2017A aluminium alloy is a heat treatable and wrought aluminium product which includes the significant addition of copper as an added alloying element.

2017A aluminum is a 2000-series aluminum alloy: the main alloying addition is copper, and it is formulated for primary forming into wrought products. 2017A is the Aluminum Association (AA) designation for this material. In European standards, it will be given as EN AW-2017A. AlCu4MgSi(A) is the EN chemical designation. H14 is the British Standard (BS) designation. Additionally, the AFNOR (French) designation is A-U4G.



It originally received its standard designation in 1972.

The properties of 2017A aluminum include twelve common variations. This page shows summary ranges across all of them. For more specific values, follow the links immediately below. The graph bars on the material properties cards further below compare 2017A aluminum to: 2000-series alloys (top), all aluminum alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.

Material test certificate

FOR HIGH STRENGTH STRUCTURAL COMPONENTS

The material offers an attractive combination of high strength with excellent fatigue resistance. 2017A offers good corrosion resistance though traditional welding is not possible as the corrosion resistance characteristics would be affected. Welding is possible using resistance welding techniques. With superior strength, ductility and formability, 2017A aluminium is commonly used in engineering applications. The material also offers greater strength when compared to 2011 aluminium.

TYPICAL APPLICATIONS

Commercial applications for this engineering material include:

• Aerospace components
• Automotive components
• Fasteners
• Rivets
• High strength components
• Structural components

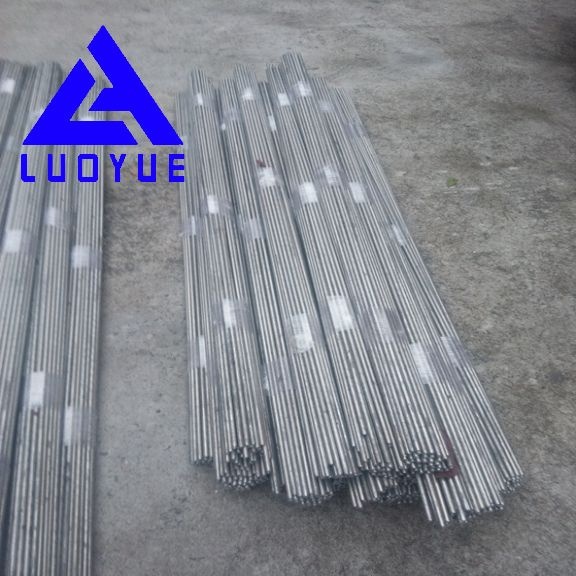

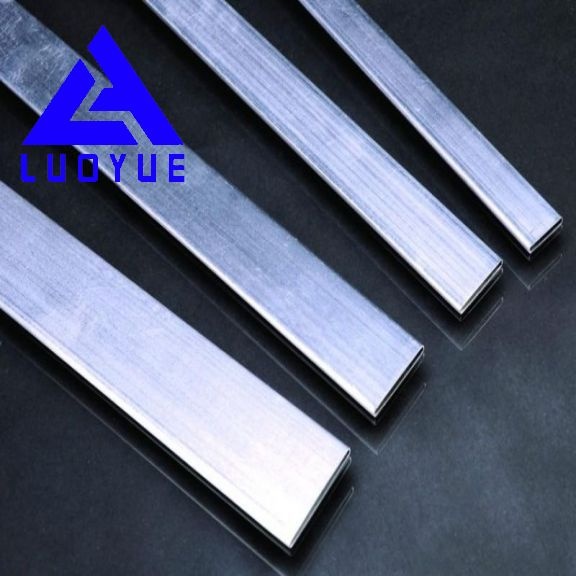

We stock 2017A in flats, round bar, plate, sheet, round tube, square bar and hexagon bar.

Mechanical properties

Nominal thickness mm	Brinell hardness HBW	Yield strength Rp0,2 MPa min./max.	Tensile strength Rm MPa min./max.	Elongation A50 mm % min.	Elongation A % min.	Bending radius 180° t min.	Bending radius 90° t min.
>= 0.4 - 1.5	110	245	390	14		3.0 t	3.0 t
1.5 - 6	110	245	390	15		5.0 t	5.0 t
6 - 12.5	111	260	390	13			8.0 t
12.5 - 40	110	250	390		12
40 - 60	108	245	385		12
60 - 80	0	240	370		7
80 - 120	105	240	360		6
120 - 150	101	240	350		4
150 - 180	0	220	330		2
180 - 200	0	200	300		2

EN AW 2017A | Al Cu4MgSi(A): Chemical composition [% max. or range]

Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Ga	V
0.20–0.8	0.7	3.5–4.5	0.40–1.0	0.40–1.0	0.1	—	0,.5	—	—	—

3. Main application / Special features of EN AW-2017A:
A resilient material with increased strength values, which is mainly used in hydraulics. Use at elevated operating temperatures above 120 ° to 180 ° C. Since normally only cold cured (T451) is used, problems can arise with larger thicknesses due to residual stress. Particularly with asymmetrical machining

Equivalent grades of grade   ENAW-AlCu4MgSi(A)   ( ENAW-2017A ) Warning! Only for reference

EU EN	USA -	Germany DIN,WNr	Japan JIS	France AFNOR	Italy UNI	Poland PN	Czechia CSN	Austria ONORM	Russia GOST	Inter ISO
ENAW-AlCu4MgSi(A)	A92017	3.1325 AlCuMg1	2017	2017A	P-AlCu4MgMnSi	AlCuMg1	424201	AlCuMg1	D1	AlCuMgSi

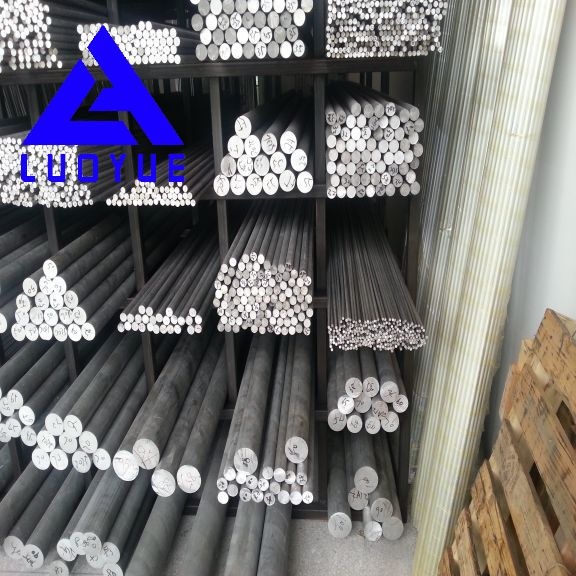

     1. Stock view

Products Description

Aluminum	Aluminum Grade
STANDARD	ASTM B209,JIS H4000-2006,GB/T 3190-2008,GB/T 3880-2006,etc.
1000 Series	1050 1060 1070 1100
2000 Series	2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17
3000 Series	3A21, 3003, 3103, 3004, 3005, 3105
4000 Series	4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A
5000 Series	5052, 5083, 5754, 5005, 5086,5182
6000 Series	6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02
7000 Series	7075,7050,7A04,7472,7475
Thickness(mm)	aluminum plate 0.2mm-300mm
Width(mm)	100-2800mm
Length(mm)	2000mm,2440mm,6000mm,or as required.
Surface	Wire drawing,oxidation,PS,Mirror surface,Embossing etc
Temper	H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114/H194, etc
Type	coil/sheet/strips/plate

2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch
Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.


2.Inspection Machining





According to the requirements of the state of steel materials, the use of binding, bare, frame, pallet.

Packing standard: according to the following national standard requirements (the parts beyond the requirements will be specified separately)

1. Company profile

Luoyue Precision Metal established in 2018, is a leading Stockists and global distributor for Metal Raw Materials like Steel/Aluminum/ Stainless steel/Copper/ Nickel Rods, Bars, Plates, Sheets,Pipes, fittings, fasteners, Inconel alloys, Wire and Wire-Mesh to customers from aerospace, automotive, electronics, precision manufacturing, ordnance, marine, shipbuilding, oil & gas, power plant and construction.

The company has a high-precision, high-efficiency modern processing site, CNC machine tools and complete testing and inspection technology, and introduces international advanced technologies.

           2. Certificates. (Business certificate/ISO9001/Trading certificate/SGS/FormE)

                  .

          3. Our customers

                 Customer visits

           4. Past Inquiry

                  .

   1.Customer Rating



FAQ
1. Q: Are you a manufacturer?
 A:We have our own warehouse and 1000 tons metal stock. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
 A: Sure, we welcome you to visit the factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
 A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
 A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best  price with earliest vessel and professional service.
5. Q: How long is the delivery time?
 A: Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
 A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
 A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
 A: 2 Tons
