Is 2024 an Aluminium alloy?
Alloy 2024 is one of the more prominent aluminium alloys. Due to the alloys good fatigue resistance, especially in thick plate form, the material is specified for use in the aerospace and military sector in fuselage applications in such areas as structures and wing tension members.

What is 2024 Aluminium alloy used for?
2024 aluminum is an alloy that is often used in the aerospace industry. It is a high-strength alloy suitable for projects requiring a high strength-to-weight ratio and excellent fatigue resistance. As such, it is primarily found in wing and fuselage structures that frequently come under tension.

Comparing 2024 Aluminum to Other Alloys

The 2024 alloy is often chosen for applications that require high strength, but you may be considering other options for your particular application. Below are some other common alloys that are often considered as alternatives.

2024 vs 6061

6061 aluminum, also known as “structural aluminum” is an alloy in the 6000 series with magnesium as its primary alloying element. It offers medium to high strength but does not offer the same tensile or yield strength that 2024 does. While it is not as strong, it is more versatile. It is more corrosion resistant, easier to weld, and more suited to machining.

It has a wide range of applications, including building products, piping, and recreational products. Like 2024, it is also used in wing and fuselage structures, but this is more common in homebuilt aircraft, as opposed to commercial or military aircraft.

2024 vs 7075

                                                The 7075 alloy, like 2024, is very common in the aerospace industry. The main reason for this is that it is one of the strongest aluminum alloys available. With precipitation hardening, it can achieve a tensile strength of 83,000 psi and a yield strength of 73,000 psi, stronger than 2024. In terms of applications, 7075 is suited to applications that require high stress/strain resistance. Whereas, 2024 is suited to applications where high cyclic fatigue resistance is required.

ALUMINUM ALLOY 2024 GENERAL DESCRIPTION:

What is Alloy 2024?

2024 aluminum is heat-treatable aluminum alloy with copper as the primary alloying element. It is malleable when in the fully soft, annealed temper and can be heat-treated to high strength levels after forming. Due to its high strength to weight ratio, it is widely used in aerospace applications.

TYPICAL CHEMISTRY LIMITS for 2024 ALUMINUM:

	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others-Each	Others Total	Al
2024	0.50	0.50	3.8-4.9	0.30-0.9	1.2-1.8	0.10	0.25	0.15	0.05	0.15	Remainder

Composition according to Aluminum Association.

TYPICAL MECHANICAL DATA for 2024 ALUMINUM:

The following typical 2024 aluminum alloy properties are not guaranteed since in most cases they are average for various sizes and methods of manufacture and may not be exactly representative of any particular product or size. The data is intended for comparing alloys and tempers and should not be used for design purposes.

Summary
The 2024 aluminum alloy is often used in aircraft structural applications due to its high strength and fatigue resistance. It is stronger than 6061 but less versatile. While 7075 is suited to applications that require high stress and strain resistance, 2024 has high cyclic fatigue resistance.


Download our 2024 aluminum properties PDF to keep as a reference.


Take a look at our aluminum extrusions page for more information about our services. We offer high-quality profiles from India with on-time delivery, and great service.

If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

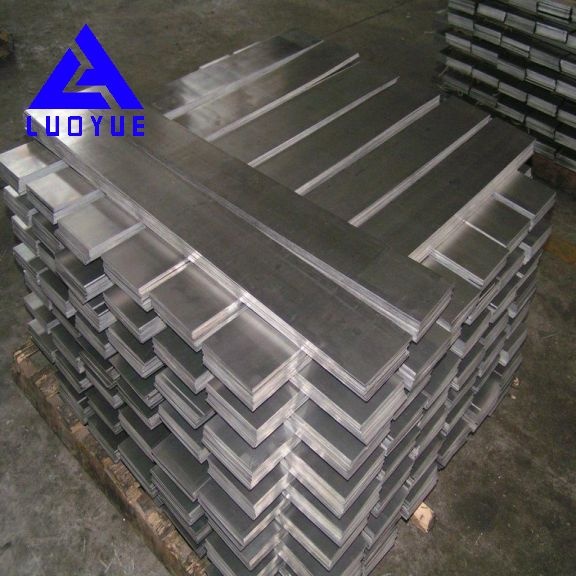

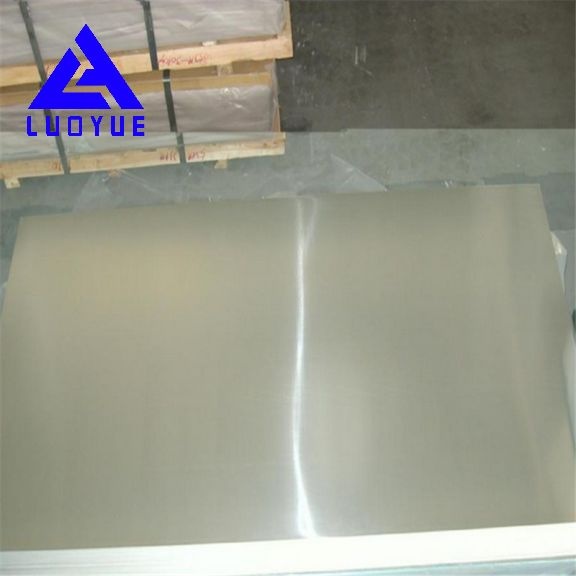

1. Stock view



2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch

Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.



2.Inspection Machining



   Metal composition testing machine                      Computerised Materials Torsion Testing Machine                Metal bar composite rod bending tensile strength testing machine

       3. Material test certificate

     4. Packaging

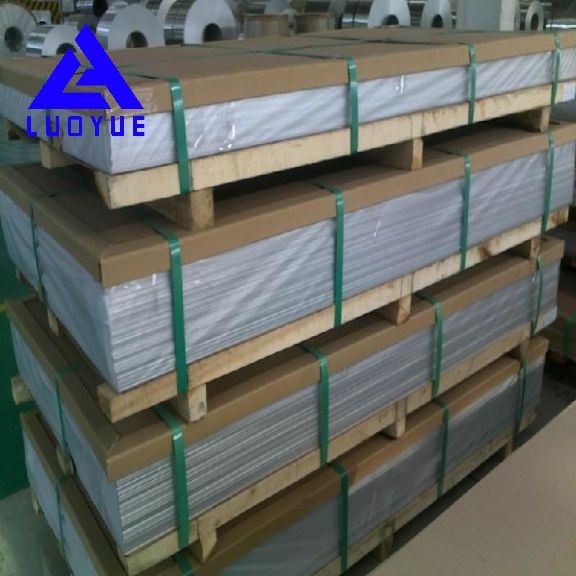

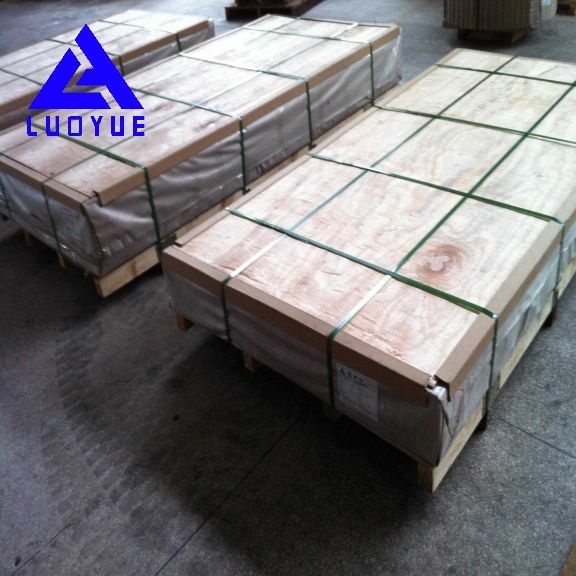

    In the steel export activities, we also need to pack the steel to prevent the steel from being scattered in the transportation process. In the hoisting process, it is necessary to lift the steel. So steel is very necessary in the export process. Below is the picture of packaging：

According to the requirements of the state of steel materials, the use of binding, bare, frame, pallet.

Packing standard: according to the following national standard requirements (the parts beyond the requirements will be specified separately)

GB／T191 packaging-pictorial marking for handling of goods

GB／T4857 (all parts) basic test for transport packages

GB／T4879 rustproof packaging

GB／T5048 damp-proof packing

GB／T7350water-proof packing

GB／T8166 Package cushioning design

GB/T4892-1996  Hard straight square transport packaging size series

GB/T13201-91 Cylinder transport package size series

 GB/T16471-1996Design and make the size limit of transport package

5. Logistic



1. Company profile

Luoyue Precision Metal established in 2018, is a leading Stockists and global distributor for Metal Raw Materials like Steel/Aluminum/ Stainless steel/Copper/ Nickel Rods, Bars, Plates, Sheets,Pipes, fittings, fasteners, Inconel alloys, Wire and Wire-Mesh to customers from aerospace, automotive, electronics, precision manufacturing, ordnance, marine, shipbuilding, oil & gas, power plant and construction.

The company has a high-precision, high-efficiency modern processing site, CNC machine tools and complete testing and inspection technology, and introduces international advanced technologies.

           2. Certificates. (Business certificate/ISO9001/Trading certificate/SGS/FormE)

                  .

          3. Our customers

                 Customer visits

           4. Past Inquiry

                  .

   1.Customer Rating



FAQ
1. Q: Are you a manufacturer?
 A:No, we are not manufacturers. We have our own warehouse and our own company. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
 A: Sure, we welcome you to visit the factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
 A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
 A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best  price with earliest vessel and professional service.
5. Q: How long is the delivery time?
 A: Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
 A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
 A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
 A: 2 Tons

Contact us
