2018 aluminum alloy is a good mechanical processing performance, suitable for processing aircraft engine cylinder, cover, piston and other fields of products.

Application features

2018 aluminum alloy, American deformed aluminum and aluminum alloy. 2018 aluminum alloy machining performance is good. 2018 aluminum alloy is suitable for processing aircraft engine cylinder, cover, piston.

Standard reference

Aluminum Association of America (AA) 2018, UNS A92018; China GB 2 a90 (LD9)

Chemical composition

Aluminum Al(minimum) : allowance

Si Si: 0.9 or less

Iron Fe: 1.0 or less

Copper Cu: 3.5 ~ 4.5

Manganese Mn: 0.20 or less

Magnesium Mg: 0.45 ~ 0.9

Chromium Cr: 0.10 or less

Ni Ni: 1.7 ~ 2.3

Zinc and zinc: 0.25 or less

Other elements not specified: each: ≤0.05; Total: 0.15 or less

Mechanical properties

Shear strength τ (MPa) : ≥186

Note: The shear resistance of wire is basically stable after natural aging after solution heat treatment

Sample size: all wire diameter

Heat treatment specification editor broadcast

1) Complete annealing: heating 370 ~ 450℃; Depending on the effective thickness of the material, the insulation time is 30 ~ 120min. At the speed of 30 ~ 50℃/h, follow the furnace cooling to below 300℃, and then air cooling. 2) Rapid annealing: heating 350 ~ 370℃; Depending on the effective thickness of the material, the insulation time is 30 ~ 120min. Air or water cooling. 3) Quenching and aging: quenching 495 ~ 505℃, water cooling; Natural aged at room temperature, 96h.

Status: Aluminum and aluminum alloy wire for rivets (T4 state)

If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

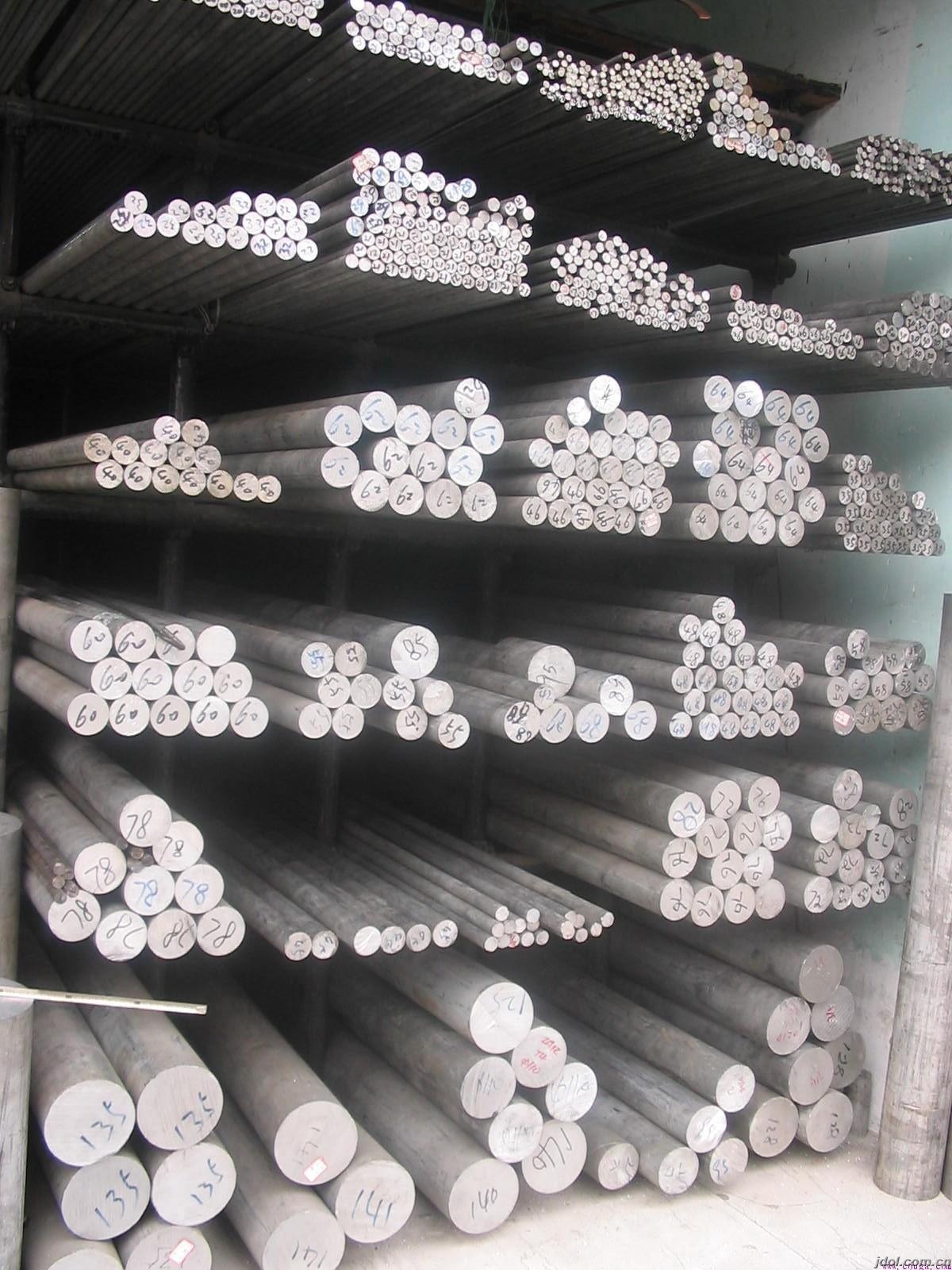

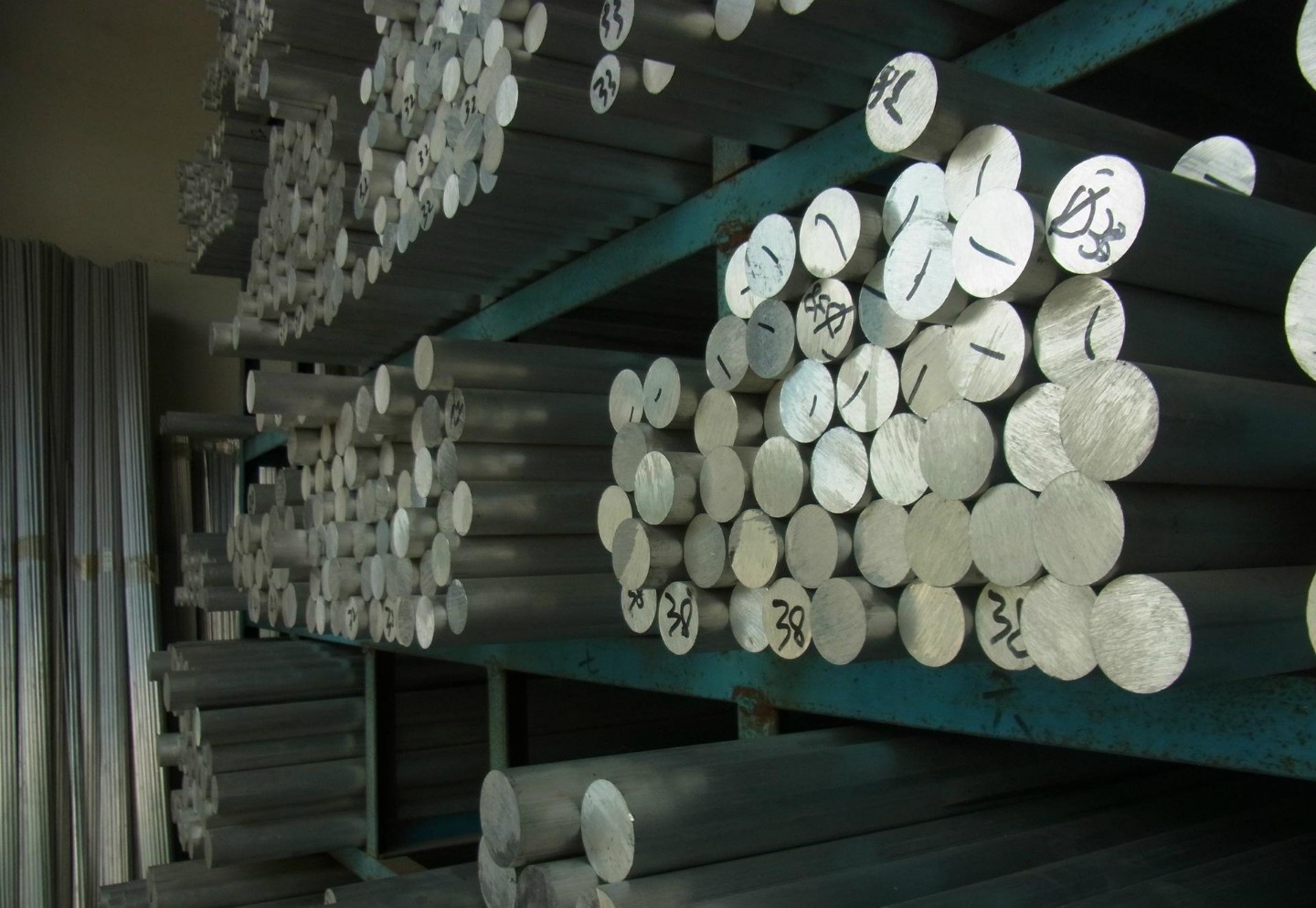

1. Stock view



2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch

Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.



2.Inspection Machining



   Metal composition testing machine                      Computerised Materials Torsion Testing Machine                Metal bar composite rod bending tensile strength testing machine

       3. Material test certificate

     4. Packaging

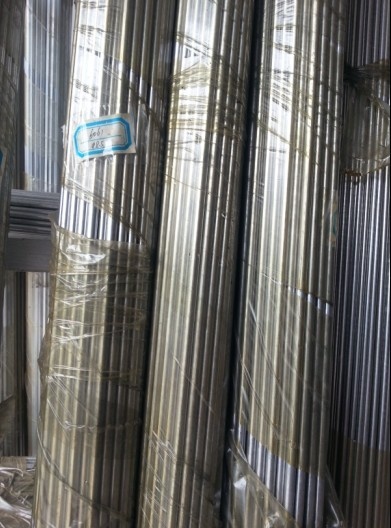

    In the steel export activities, we also need to pack the steel to prevent the steel from being scattered in the transportation process. In the hoisting process, it is necessary to lift the steel. So steel is very necessary in the export process. Below is the picture of packaging：
