• 3004 aluminium alloy is an alloy in the wrought aluminium-manganese family (3000 or 3xxx series). It is similar to the 3003 alloy, except for the addition of approximately 1% magnesium. It can be cold worked (but not, unlike some other types of aluminium alloys, heat treated) to produce tempers with a higher strength but a lower ductility.

What is aluminium/aluminum 3004 alloy?

Aluminium / Aluminum 3004 alloy is a non-heat treatable alloy. Aluminium / Aluminum 3004 alloy is forged at temperatures ranging from 372 to 510°C (700 to 950°F). Aluminium / Aluminum 3004 alloy is hot worked at 260 to 483°C (500 to 900°F).

Physical Properties

The physical properties of Aluminium / Aluminum  3004 alloy are tabulated below.

Properties	Metric	Imperial
Density	2.6-2.8 g/cm3	0.0939- 0.101 lb/in3
Melting point	633°C	1170°F

Mechanical Properties

The mechanical properties of Aluminium / Aluminum  3004 alloy are outlined in the following table.

Properties	Metric	Imperial
Tensile strength	215 MPa	31183 psi
Yield strength	170 MPa	24656 psi
Shear strength	115 MPa	16680 psi
Fatigue strength	105 MPa	15229 psi
Elastic modulus	70-80 GPa	10153-11603 ksi
Poisson's ratio	0.33	0.33
Elongation	10%	10%
Hardness	52	52

Chemical Composition

3004 Aluminium Alloy Composition by Mass %

Al	Mg	Si	Fe	Cu	Zn	Mn	Remainder
95.6 to 98.2%	0.8 to 1.3%	0.3% max	0.7% max	0.25% max	0.25% max	1.0 to 1.5%	0.15% max

Is 3004 aluminum heat treatable?

3004 aluminum is a widely used alloy with high strength, good formability, good workability, excellent corrosion resistance, and drawing characteristics. It is non-heat treatable and shares many of the same applications as 3003 aluminum sheet. 3004 aluminum is a general purpose alloy with excellent corrosion resistance.

Other designations that are equivalent to Aluminium / Aluminum  3004 alloy include:


ASTM B209
ASTM B221
ASTM B313
ASTM B547
ASTM B548
SAE J454

If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

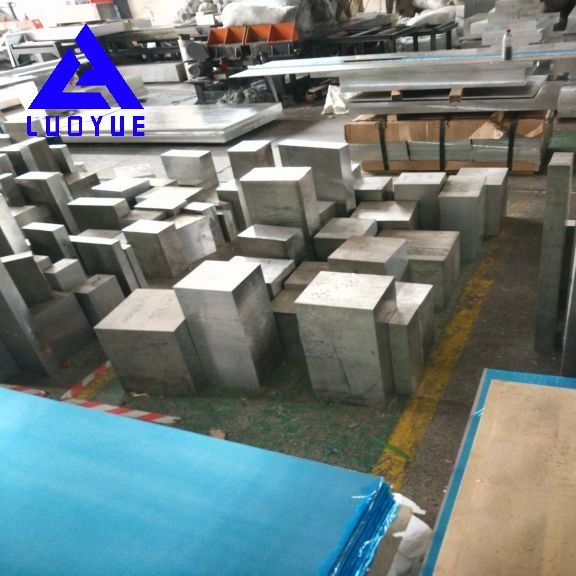

1. Stock view



2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch

Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.



2.Inspection Machining



   Metal composition testing machine                      Computerised Materials Torsion Testing Machine                Metal bar composite rod bending tensile strength testing machine

       3. Material test certificate

     4. Packaging

    In the steel export activities, we also need to pack the steel to prevent the steel from being scattered in the transportation process. In the hoisting process, it is necessary to lift the steel. So steel is very necessary in the export process. Below is the picture of packaging：

According to the requirements of the state of steel materials, the use of binding, bare, frame, pallet.

Packing standard: according to the following national standard requirements (the parts beyond the requirements will be specified separately)

GB／T191 packaging-pictorial marking for handling of goods

GB／T4857 (all parts) basic test for transport packages

GB／T4879 rustproof packaging

GB／T5048 damp-proof packing

GB／T7350water-proof packing

GB／T8166 Package cushioning design

GB/T4892-1996  Hard straight square transport packaging size series

GB/T13201-91 Cylinder transport package size series

 GB/T16471-1996Design and make the size limit of transport package

5. Logistic



1. Company profile

Luoyue Precision Metal established in 2018, is a leading Stockists and global distributor for Metal Raw Materials like Steel/Aluminum/ Stainless steel/Copper/ Nickel Rods, Bars, Plates, Sheets,Pipes, fittings, fasteners, Inconel alloys, Wire and Wire-Mesh to customers from aerospace, automotive, electronics, precision manufacturing, ordnance, marine, shipbuilding, oil & gas, power plant and construction.

The company has a high-precision, high-efficiency modern processing site, CNC machine tools and complete testing and inspection technology, and introduces international advanced technologies.

           2. Certificates. (Business certificate/ISO9001/Trading certificate/SGS/FormE)

                  .

          3. Our customers

                 Customer visits

           4. Past Inquiry

                  .

   1.Customer Rating



FAQ
1. Q: Are you a manufacturer?
 A:No, we are not manufacturers. We have our own warehouse and our own company. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
 A: Sure, we welcome you to visit the factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
 A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
 A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best  price with earliest vessel and professional service.
5. Q: How long is the delivery time?
 A: Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
 A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
 A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
 A: 2 Tons

Contact us
