7000 series aluminum is Al-Mg-Si-Cu Alloy,including 7075 T651 T7351 aluminum pipe,7072 aluminum pipe,7072-T7451 aluminium pipe,This alloy is precipitation hardened to very high strength levels. Alloy 7000 is used in airframe structures and other highly stressed components.
7075-T651 Aluminum plate is an excellent candidate for most processing techniques and offers moderate corrosion resistance. With one of the highest strength to weight ratios for heat treatable alloys, it’s a lightweight material with a semi-smooth surface and a dull mill finish.  Commonly machined to end user specifications, typical applications include aircrafts, marine, motor sports, and commercial grade parts.

Key Words: Aluminium 7075-T6; Aluminium 7075-T651, UNS A97075; ISO AlZn5.5MgCu;Aluminium 7075-T6; Aluminium 7075-T651; AA7075-T6

Width		1219mm/1250mm/1500mm/2500mm/3000mm/as you required
Thickness		0.05-250mm
Length		2438mm/2500mm/3000mm/5000mm/6000mm/as you required
Standard		AISI,ASTM,DIN,JIS,GB ,JIS,SUS,EN,etc
MOQ		3Tons
Technique		Hot rolled/Cold rolled
Surface Treatment		Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Thickness Tolerance		±0.05mm
Material		1000 2000 3000 4000 5000 6000 7000 8000 Series
Application		construction,decoration,hardware,electric appliances,machinery and other industrial and civil purposes,such as electronic capacitor,refrigerator,computer,casting,telecommunication,equipment,lamp shade,air conditioner,cosmetics cover and so on.Or it can be made as customers' requirement.
Shipment Time		1.200ton:Within 5days after deposit 2.Customize Size:Within 10days after deposit 3.OEM Product: Within 15 days after deposit
Capacity		20000Tons/Month

化学成分/
CHEMICAL COMPOSITION

合金牌号

硅Si

铁Fe

铜Cu

锰Mn

镁Mg

铬Cr

锌Zn

钛Ti

锆Zr

其它

AL

欧标EN AW

0.4

0.5

1.2-2.0

0.3

2.1-2.9

0.18-0.28

5.1-6.1

0.2

——

每个

总计

7075（AlZn5.5MgCu）

0.05

0.15

余量

机械性能/
MECHANICAL PROPERTIES

合金牌号铝合金牌号及     状态	抗拉强度     Rm/Mpa	屈服强度     Rp0.2/Mpa	延伸率/%	硬度/ HBWα
7075-T651	572	503	11	150

物理性能/
PHYSICAL PROPERTY

合金牌号铝合金牌号及     状态	热膨胀系数     (20-100℃)     μm/m·k     Rm/Mpa	熔点范围     (℃)     Rp0.2/Mpa	电导率     20℃(68℉)     (%IACS)	电阻率20℃(68℉)     Ωmm2/m	密度     (20℃)(g/cm3)     Ωmm2/m
7075-T651	23.6	475-635	33	0.0515	2.9

Density: 2.90g/cm³. Shear strength: alloy) and aluminum alloy, O state: 152MPa (22ksi); Alloy) T6, T7451 status: 331MPa (48ksi); Aluminum alloy T6, T7451 state: 317MPa(46ksi) Hardness: O state: 60HB; T6,T651 status: 150HB; The data were obtained from the test results of a ball with a diameter of 10mm and a load of 500kg for 30s. Poisson's ratio :0.33. Elastic modulus: Tensile: 71.0GPa (10.3×106psi), shear: 26.9GPa (3.9×106psi), compression: 72.4GPa (10.5×106psi) Fatigue strength: T6, T7451, T73 State: The smooth and notched specimens were cycled 5×108 times in the R·R·Moore test, which was 159MPa (23ksi).
Materail Test Certificate


Industry Applications
The 7000 series aluminum alloys are usable in a variety of applications. The light weight and toughness characteristics of grade 7075 are valued highly by manufacturers and end users. As a strong, machinable aluminum alloy, it is highly used in the automotive, aircraft and aerospace industries. Highly stressed parts, such as gears, fuse parts, structural components, and bows are often comprised of 7075 aluminum alloy. You can purchase high quality 7075-T651 aluminum from our inventory at Howard Precision Metals.
Machining and Welding Operations
Grade 7075 is easy to work with and machinable. General welding is not recommended with 7075 aluminum alloy. However, you may achieve desirable results when applying resistance welding to the alloy. The application of arc or gas welding may lower the alloy’s natural anti-corrosion properties.
For more than 10 years, Luoyue Precision Metals has served industrial customers with their high-quality metal requirements. Regardless of your specific needs pertain to custom aluminum extrusions or aluminum stock, we have you covered. To find out how we can serve your aluminum supply needs, call us today  or request a free quote on our site.

If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

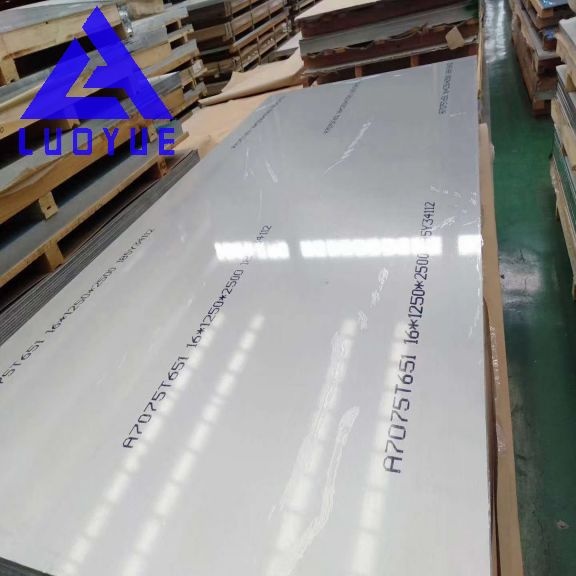

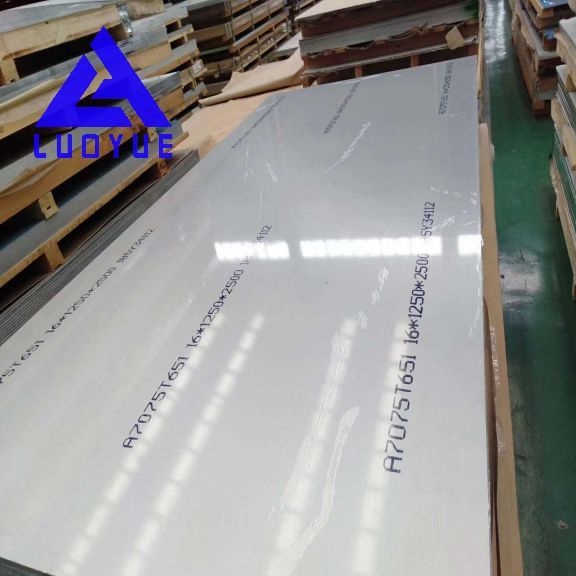

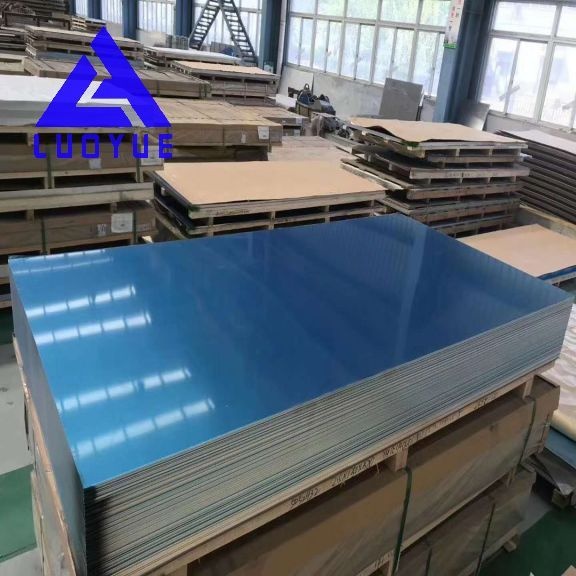

1. Stock view



2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch

Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.



2.Inspection Machining



   Metal composition testing machine                      Computerised Materials Torsion Testing Machine                Metal bar composite rod bending tensile strength testing machine

       3. Material test certificate

     4. Packaging

    In the steel export activities, we also need to pack the steel to prevent the steel from being scattered in the transportation process. In the hoisting process, it is necessary to lift the steel. So steel is very necessary in the export process. Below is the picture of packaging：

According to the requirements of the state of steel materials, the use of binding, bare, frame, pallet.

Packing standard: according to the following national standard requirements (the parts beyond the requirements will be specified separately)

GB／T191 packaging-pictorial marking for handling of goods

GB／T4857 (all parts) basic test for transport packages

GB／T4879 rustproof packaging

GB／T5048 damp-proof packing

GB／T7350water-proof packing

GB／T8166 Package cushioning design

GB/T4892-1996  Hard straight square transport packaging size series

GB/T13201-91 Cylinder transport package size series

 GB/T16471-1996Design and make the size limit of transport package

5. Logistic



1. Company profile

Luoyue Precision Metal established in 2018, is a leading Stockists and global distributor for Metal Raw Materials like Steel/Aluminum/ Stainless steel/Copper/ Nickel Rods, Bars, Plates, Sheets,Pipes, fittings, fasteners, Inconel alloys, Wire and Wire-Mesh to customers from aerospace, automotive, electronics, precision manufacturing, ordnance, marine, shipbuilding, oil & gas, power plant and construction.

The company has a high-precision, high-efficiency modern processing site, CNC machine tools and complete testing and inspection technology, and introduces international advanced technologies.

           2. Certificates. (Business certificate/ISO9001/Trading certificate/SGS/FormE)

                  .

          3. Our customers

                 Customer visits

           4. Past Inquiry

                  .

   1.Customer Rating



FAQ
1. Q: Are you a manufacturer?
 A:No, we are not manufacturers. We have our own warehouse and our own company. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
 A: Sure, we welcome you to visit the factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
 A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
 A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best  price with earliest vessel and professional service.
5. Q: How long is the delivery time?
 A: Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
 A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
 A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
 A: 2 Tons
