Name:C22000
Download PDF Copy
Brief introduction: C22000
Brass is a copper alloy based on copper zinc (more than 90%), which can be divided into lead brass, nickel brass manganese brass and so on
Product Description
Service
Why choose us?
Buyers review
Chemical Composition
Elements
Cu(1) Pb Zn Fe
(1) Cu + Sum of Named Elements 99.8% min.
Min (%) 89.0
Max (%) 91.0 0.05 Rem 0.05
Mechanical Properties *
Form Temper Temper Code Tensile Strength
(ksi)
YS-0.5% Ext
(ksi)
Elongation
(%)
Rockwell B scale Rockwell F scale Rockwell 30T scale Shear Strength
(ksi)
Torsion Modulus
(ksi)
Fatigue Strength**
(ksi)
Ultimate Tensile Strength in Shear
(ksi)
Section Size
(in)
Cold Work
(%)
* Measured at room temperature, 68°F (20°C).** Fatigue Strength: 100 x 106 cycles, unless indicated as [N] x 106.
Flat Products 1/2 Hard H02 52 Typ
11 Typ
58 Typ
56 Typ
35 Typ
0.04
1/2 Hard H02 52 Typ
45 Typ
15 Typ
58 Typ
35 Typ
0.25
1/4 Hard H01 45 Typ
35 Typ
25 Typ
42 Typ
44 Typ
33 Typ
0.04
As Hot Rolled M20 37 Typ
10 Typ
45 Typ
53 Typ
28 Typ
0.25
As Hot Rolled M20 39 Typ
14 Typ
44 Typ
60 Typ
31 Typ
0.04
Extra Hard H06 67 Typ
58 Typ
4 Typ
75 Typ
67 Typ
40 Typ
0.04
Hard H04 61 Typ
54 Typ
5 Typ
70 Typ
63 Typ
38 Typ
23 Typ 0.04
Nominal Grain Size 0.015 mm OS015 41 Typ
15 Typ
42 Typ
65 Typ
26 Typ
32 Typ
0.04
Nominal Grain Size 0.025 mm OS025 39 Typ
14 Typ
44 Typ
60 Typ
16 Typ
31 Typ
0.04
Nominal Grain Size 0.035 mm OS035 38 Typ
12 Typ
50 Typ
57 Typ
30 Typ
0.25
Nominal Grain Size 0.035 mm OS035 38 Typ
12 Typ
45 Typ
57 Typ
12 Typ
30 Typ
0.04
Nominal Grain Size 0.050 mm OS050 37 Typ
10 Typ
45 Typ
53 Typ
6 Typ
28 Typ
0.04
Spring H08 72 Typ
62 Typ
3 Typ
78 Typ
69 Typ
42 Typ
21 Typ 0.04
Rod 1/8 Hard H00 45 Typ
25 Typ
42 Typ
33 Typ
0.5
Nominal Grain Size 0.035 mm OS035 40 Typ
50 Typ
55 Typ
32 Typ
0.5
Tube Hard Drawn H80 60 Typ
6 Typ
69 Typ
62 Typ
35
Nominal Grain Size 0.035 mm OS035 38 Typ
12 Typ
50 Typ
57 Typ
12 Typ
Wire 1/2 Hard H02 60 Typ
6 Typ
37 Typ
0.08
1/4 Hard H01 50 Typ
13 Typ
34 Typ
0.08
1/8 Hard H00 44 Typ
27 Typ
33 Typ
0.08
Extra Hard H06 83 Typ
3 Typ
0.08
Hard H04 74 Typ
4 Typ
42 Typ
6.4 Typ 23 Typ 0.08
Nominal Grain Size 0.015 mm OS015 42 Typ
48 Typ
32 Typ
0.08
Nominal Grain Size 0.035 mm OS035 40 Typ
50 Typ
30 Typ
0.08
Spring H08 90 Typ
3 Typ
0.08
Physical Properties
Melting Point - Liquidus°F 1910
Melting Point - Solidus°F 1870
Densitylb/cu in. at 68°F 0.318
Specific Gravity 8.8
Electrical Conductivity% IACS at 68°F 44
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 109
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) 10.2
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 17000
Modulus of Rigidityksi 6400
Fabrication Properties
Technique Suitability
Soldering Excellent
Brazing Excellent
Oxyacetylene Welding Good
Gas Shielded Arc Welding Good
Coated Metal Arc Welding Not Recommended
Spot Weld Not Recommended
Seam Weld Not Recommended
Butt Weld Good
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Good
Machinability Rating 20
Thermal Properties
Treatment Minimum* Maximum*
* Temperature is measured in Fahrenheit.
Annealing 800 1450
Hot Working Temperature 1400 1600
Typical uses
Product Category Product Reason Category Reason
Architecture Etching Bronze Appearance Appearance
Etching Bronze Corrosion Resistance Corrosion Resistance
Etching Bronze Mechanical Properties Moderate Strength
Grill Work Appearance Appearance
Grill Work Corrosion Resistance Corrosion Resistance
Grill Work Forming Characteristics Formability
Grill Work Mechanical Properties Moderate Strength
Ornamental Trim Appearance Appearance
Ornamental Trim Appearance Color
Ornamental Trim Corrosion Resistance Corrosion Resistance
Ornamental Trim Forming Characteristics Formability
Ornamental Trim Mechanical Properties Moderate Strength
Screen Cloth Corrosion Resistance Corrosion Resistance
Screen Cloth Forming Characteristics Formability
Screen Cloth Mechanical Properties Moderate Strength
Weather Stripping Appearance Appearance
Weather Stripping Corrosion Resistance Corrosion Resistance
Weather Stripping Forming Characteristics Formability
Weather Stripping Mechanical Properties Moderate Strength
Builders Hardware Hardware Appearance Appearance
Hardware Corrosion Resistance Corrosion Resistance
Hardware Forming Characteristics Formability
Hardware Mechanical Properties Moderate Strength
Kick Plates Appearance Appearance
Kick Plates Corrosion Resistance Corrosion Resistance
Consumer Ball Point Pens Appearance Appearance
Ball Point Pens Corrosion Resistance Corrosion Resistance
Ball Point Pens Drawing Characteristics Drawability
Ball Point Pens Forming Characteristics Formability
Ball Point Pens Plating Characteristics Plateable
Caskets Appearance Appearance
Caskets Corrosion Resistance Corrosion Resistance
Caskets Corrosion Resistance Corrosion Resistance to Fresh Water
Caskets Corrosion Resistance Corrosion Resistance to Salt Water
Caskets Forming Characteristics Formability
Caskets Mechanical Properties Moderate Strength
Chain Links Appearance Appearance
Chain Links Mechanical Properties Moderate Strength
Compacts Appearance Appearance
Compacts Corrosion Resistance Corrosion Resistance
Compacts Forming Characteristics Formability
Compacts Mechanical Properties Moderate Strength
Compacts Plating Characteristics Plateable
Costume Jewelry Appearance Appearance
Costume Jewelry Corrosion Resistance Corrosion Resistance
Costume Jewelry Forming Characteristics Formability
Costume Jewelry Mechanical Properties Moderate Strength
Costume Jewelry Plating Characteristics Plateable
Housing for Lipstick Compacts Appearance Appearance
Housing for Lipstick Compacts Corrosion Resistance Corrosion Resistance
Housing for Lipstick Compacts Drawing Characteristics Drawability
Housing for Lipstick Compacts Forming Characteristics Formability
Housing for Lipstick Compacts Mechanical Properties Moderate Strength
Housing for Lipstick Compacts Plating Characteristics Plateable
Lipstick Cases Appearance Appearance
Lipstick Cases Corrosion Resistance Corrosion Resistance
Lipstick Cases Drawing Characteristics Drawability
Lipstick Cases Forming Characteristics Formability
Lipstick Cases Mechanical Properties Moderate Strength
Lipstick Cases Plating Characteristics Plateable
Electrical Cable Wrap Conductivity (Electrical) Electrical Conductivity
Cable Wrap Conductivity (Thermal) Thermal Conductivity
Cable Wrap Corrosion Resistance Corrosion Resistance
Cable Wrap Forming Characteristics Formability
Cable Wrap Mechanical Properties Moderate Strength
Rotor Bar - AC Motors Brazing Characteristics Brazability
Rotor Bar - AC Motors Conductivity (Electrical) Electrical Resistivity - 45 % IACS
Wave Guides Conductivity (Electrical) Electrical Conductivity
Wave Guides Conductivity (Thermal) Thermal Conductivity
Wave Guides Corrosion Resistance Corrosion Resistance
Wave Guides Forming Characteristics Formability
Wave Guides Mechanical Properties Moderate Strength
Fasteners Bolts Appearance Appearance
Bolts Corrosion Resistance Corrosion Resistance
Bolts Forming Characteristics Formability
Bolts Mechanical Properties Moderate Strength
Line Clamps Conductivity (Electrical) Electrical Conductivity
Line Clamps Conductivity (Thermal) Thermal Conductivity
Line Clamps Corrosion Resistance Corrosion Resistance
Rivets Appearance Appearance
Rivets Corrosion Resistance Corrosion Resistance
Rivets Forming Characteristics Formability
Rivets Mechanical Properties Moderate Strength
Screw Shells Corrosion Resistance Corrosion Resistance
Screw Shells Forming Characteristics Formability
Screw Shells Mechanical Properties Moderate Strength
Screws Corrosion Resistance Corrosion Resistance
Screws Forming Characteristics Formability
Screws Mechanical Properties Moderate Strength
Industrial Base for Vitreous Enamel Corrosion Resistance Corrosion Resistance
Base for Vitreous Enamel Forming Characteristics Formability
Base for Vitreous Enamel Mechanical Properties Moderate Strength
Base for Vitreous Enamel Plating Characteristics Plateable
Escutcheons Appearance Appearance
Escutcheons Corrosion Resistance Corrosion Resistance
Escutcheons Forming Characteristics Formability
Escutcheons Mechanical Properties Moderate Strength
Flexible Tube Corrosion Resistance Corrosion Resistance
Flexible Tube Forming Characteristics Formability
Flexible Tube Mechanical Properties Moderate Strength
Screen Wire Appearance Appearance
Screen Wire Corrosion Resistance Corrosion Resistance
Screen Wire Mechanical Properties Moderate Strength
Studs Corrosion Resistance Corrosion Resistance
Studs Forming Characteristics Formability
Studs Mechanical Properties Moderate Strength
Marine Marine Hardware Corrosion Resistance Corrosion Resistance
Marine Hardware Forming Characteristics Formability
Marine Hardware Mechanical Properties Moderate Strength
Marine Hardware Plating Characteristics Plateable
Ordnance Artillery Projectile Rotating Bands, Press Fit Corrosion Resistance Corrosion Resistance
Artillery Projectile Rotating Bands, Press Fit Friction & Wear Properties Galling Resistance
Primer Caps Corrosion Resistance Corrosion Resistance
Primer Caps Forming Characteristics Formability
Primer Caps Mechanical Properties Moderate Strength
Rotating Bands Corrosion Resistance Corrosion Resistance
Rotating Bands Forming Characteristics Formability
Rotating Bands Mechanical Properties Moderate Strength
Small Arms Cartridges Corrosion Resistance Corrosion Resistance
Small Arms Cartridges Forming Characteristics Formability
Small Arms Cartridges Mechanical Properties Moderate Strength
Plumbing Plumbers' Brass Goods Corrosion Resistance Corrosion Resistance
Plumbers' Brass Goods Forming Characteristics Formability
Plumbers' Brass Goods Plating Characteristics Plateable
Applicable Specifications
Form Specific Sub-Form Application System Standard Description
Bands Projectile Rotating MILITARY MIL-B-18907 BANDS, PROJECTILE ROTATING
Projectile Rotating MILITARY MIL-B-20292 BLANKS, ROTATING BAND, FOR PROJECTILES
Bar SAE J463 WROUGHT COPPER AND COPPER ALLOYS
SAE J461 WROUGHT AND CAST COPPER ALLOYS
ASTM B36/B36M BRASS PLATE, SHEET, STRIP AND ROLLED BAR
Cups ASTM B131 COPPER ALLOY BULLET JACKET CUPS
MILITARY MIL-C-3383 CUPS, BULLET-JACKET, COPPER ALLOY, FOR SMALL ARMS AMMUNITION
Plate ASTM B36/B36M BRASS PLATE, SHEET, STRIP AND ROLLED BAR
Rod, Bar & Shapes ASTM B927/B927M BRASS ROD, BAR, AND SHAPES
Seamless Tube ASME SB135 SEAMLESS BRASS TUBE
ASTM B135/B135M Seamless Brass Tube
ASTM B135 Tube, Seamless
Sheet ASTM B694 COPPER, COPPER ALLOY AND COPPER-CLAD STAINLESS STEEL SHEET AND STRIP FOR ELECTRICAL CABLE SHIELDING
SAE J463 WROUGHT COPPER AND COPPER ALLOYS
SAE J461 WROUGHT AND CAST COPPER ALLOYS
ASTM B36/B36M BRASS PLATE, SHEET, STRIP AND ROLLED BAR
Strip ASTM B36/B36M BRASS PLATE, SHEET, STRIP AND ROLLED BAR
SAE J461 WROUGHT AND CAST COPPER ALLOYS
ASTM B130 COMMERCIAL BRONZE STRIP FOR BULLET JACKETS
SAE J463 WROUGHT COPPER AND COPPER ALLOYS

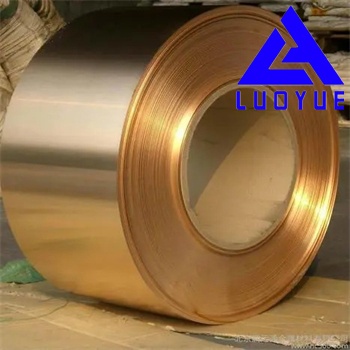

ASTM B694 COPPER, COPPER ALLOY AND COPPER-CLAD STAINLESS STEEL SHEET AND STRIP FOR ELECTRICAL CABLE SHIELDING

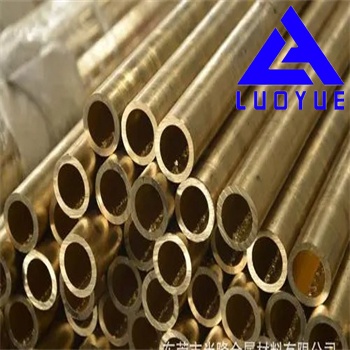

Tube SAE J461 WROUGHT AND CAST COPPER ALLOYS
ASTM B587 WELDED BRASS TUBE
Rectangular Waveguide ASTM B372 SEAMLESS COPPER AND COPPER-ALLOY RECTANGULAR WAVEGUIDE TUBE
Rectangular Waveguide MILITARY MIL-W-85 WAVEGUIDES, RIGID, RECTANGULAR
SAE J463 WROUGHT COPPER AND COPPER ALLOYS
Wire ASTM B134/B134M BRASS WIRE
MILITARY MIL-W-6712 WIRE, METALLIZING
If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.


Special recommendation
5052 Aluminium
SUP9 Spring Steel | 55CrMnA | 55Cr3 | 1.7176 | 527A60
7075-t6 aluminum pipe
5754 aluminium alloy
6061 T6/T651 ALUMINIUM PLATE
CuZn36Pb3 (CW603N) lead brass
CONTACT US
NO.501 Dongshe Road, Dongjing Town, Songjiang District, Shanghai,China,201600
Mobile/Whatsapp/Zalo/Lines/Skype:+8616628500844
Copyright@2018-2030 LUOYUE PRECISION METAL (SHANGHAI) CO., LTD
