C72200-Luoyue Precision Metal

C72200

Wrought

COPPER NICKELS Copper-Nickel Alloys

true

false

Chemical Composition

Elements

Cu(1,2,3) Pb(4) Zn(5) Fe Ni(6) Cr Mn Si Ti

(1) Cu value includes Ag.
(2) The following additional maximum limits shall apply: When the product is for subsequent welding applications and is so specified by the purchaser Zn 0.50% P 0.02% Pb 0.02% S 0.02% (0.008% S for C71110) and C 0.05%.
(3) Cu + Sum of Named Elements 99.8% min.
(4) The following additional maximum limits shall apply: When the product is for subsequent welding applications and is so specified by the purchaser Zn 0.50% P 0.02% Pb 0.02% S 0.02% (0.008% S for C71110) and C 0.05%.
(5) The following additional maximum limits shall apply: When the product is for subsequent welding applications and is so specified by the purchaser Zn 0.50% P 0.02% Pb 0.02% S 0.02% (0.008% S for C71110) and C 0.05%.
(6) Ni value includes Co.

Min (%) 0.50 15.0 0.30

Max (%) Rem 0.05 1.0 1.0 18.0 0.7 1.0 0.03 0.03

Mechanical Properties *

Form Temper Temper Code Tensile Strength
(ksi) YS-0.2% Offset
(ksi) Elongation
(%)

* Measured at room temperature, 68°F (20°C).

Strip Annealed O61 46 Typ
18 Typ
46 Typ

Hard H04 70 Typ
66 Typ
6 Typ

Tube Light Anneal O50 46 Typ
18 Typ
46 Typ

Light Drawn, Light Cold Rolled H55 70 Typ
68 Typ

Physical Properties

Melting Point - Liquidus°F 2148

Melting Point - Solidus°F 2052

Densitylb/cu in. at 68°F 0.323

Specific Gravity 8.94

Electrical Conductivity% IACS at 68°F 6.53

Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 19.9

Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) 8.8

Specific Heat CapacityBtu/ lb /°F at 68°F 0.094

Modulus of Elasticity in Tensionksi 20000

Modulus of Rigidityksi 8200

Fabrication Properties

Technique Suitability

Soldering Good

Brazing Good

Oxyacetylene Welding Fair

Gas Shielded Arc Welding Excellent

Coated Metal Arc Welding Good

Spot Weld Good

Seam Weld Good

Butt Weld Good

Capacity for Being Cold Worked Good

Capacity for Being Hot Formed Good

Common Fabrication Processes

Chemical Composition
	Elements
(1) Cu value includes Ag. (2) The following additional maximum limits shall apply: When the product is for subsequent welding applications and is so specified by the purchaser Zn 0.50% P 0.02% Pb 0.02% S 0.02% (0.008% S for C71110) and C 0.05%. (3) Cu + Sum of Named Elements 99.8% min. (4) The following additional maximum limits shall apply: When the product is for subsequent welding applications and is so specified by the purchaser Zn 0.50% P 0.02% Pb 0.02% S 0.02% (0.008% S for C71110) and C 0.05%. (5) The following additional maximum limits shall apply: When the product is for subsequent welding applications and is so specified by the purchaser Zn 0.50% P 0.02% Pb 0.02% S 0.02% (0.008% S for C71110) and C 0.05%. (6) Ni value includes Co.
Min (%)				0.50	15.0	0.30
Max (%)	Rem	0.05	1.0	1.0	18.0	0.7	1.0	0.03	0.03

Mechanical Properties *
Form	Temper	Temper Code	Tensile Strength (ksi)	YS-0.2% Offset (ksi)	Elongation (%)
* Measured at room temperature, 68°F (20°C).
Strip	Annealed	O61	46 Typ	18 Typ	46 Typ
Hard	H04	70 Typ	66 Typ	6 Typ
Tube	Light Anneal	O50	46 Typ	18 Typ	46 Typ
Light Drawn, Light Cold Rolled	H55	70 Typ	68 Typ

Physical Properties

Melting Point - Liquidus°F	2148
Melting Point - Solidus°F	2052
Densitylb/cu in. at 68°F	0.323
Specific Gravity	8.94
Electrical Conductivity% IACS at 68°F	6.53
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F	19.9
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F)	8.8
Specific Heat CapacityBtu/ lb /°F at 68°F	0.094
Modulus of Elasticity in Tensionksi	20000
Modulus of Rigidityksi	8200

Fabrication Properties
Technique	Suitability
Soldering	Good
Brazing	Good
Oxyacetylene Welding	Fair
Gas Shielded Arc Welding	Excellent
Coated Metal Arc Welding	Good
Spot Weld	Good
Seam Weld	Good
Butt Weld	Good
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Good

Bending
Forming
Welding

Thermal Properties

Treatment Minimum* Maximum*

* Temperature is measured in Fahrenheit.

Annealing 1350 1500

Hot Working Temperature 1650 1900

Typical uses

Product Category Product Reason Category Reason

Industrial Condenser Tubing Corrosion Resistance Corrosion Resistance

Condenser Tubing Corrosion Resistance Corrosion Resistance to 700 F.

Condenser Tubing Corrosion Resistance Corrosion Resistance to Salt Water

Condenser Tubing Corrosion Resistance Erosion and Impingement Corrosion Resistance

Condenser Tubing Mechanical Properties Moderate Strength

Condenser Tubing Softening Resistance Resistance to Softening

Heat Exchanger Tubing Corrosion Resistance Corrosion Resistance

Heat Exchanger Tubing Corrosion Resistance Corrosion Resistance to 700 F.

Heat Exchanger Tubing Corrosion Resistance Corrosion Resistance to Salt Water

Heat Exchanger Tubing Corrosion Resistance Erosion and Impingement Corrosion Resistance

Heat Exchanger Tubing Mechanical Properties Moderate Strength

Heat Exchanger Tubing Softening Resistance Resistance to Softening

Marine Salt Water Piping Corrosion Resistance Corrosion Resistance

Salt Water Piping Corrosion Resistance Corrosion Resistance to 700 F.

Salt Water Piping Corrosion Resistance Corrosion Resistance to Salt Water

Salt Water Piping Corrosion Resistance Erosion and Impingement Corrosion Resistance

Salt Water Piping Mechanical Properties Moderate Strength

Salt Water Piping Softening Resistance Resistance to Softening

Applicable Specifications

Form Specific Sub-Form Application System Standard Description

Bar ASTM B122/B122M COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR

Condenser & Heat Exchanger Tube with Integral Fins ASTM B956/B956M WELDED COPPER AND COPPER-ALLOY CONDENSER AND HEAT EXCHANGER TUBES WITH INTEGRAL FINS

Pipe ASTM B466/B466M SEAMLESS COPPER-NICKEL PIPE AND TUBE

Plate Condenser Tube ASTM B171/B171M COPPER ALLOY CONDENSER TUBE PLATES

ASTM B122/B122M COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR

Sheet ASTM B122/B122M COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR

Strip ASTM B122/B122M COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR

Tube ASTM B543/B543M WELDED COPPER AND COPPER ALLOY HEAT EXCHANGER TUBE

Condenser Tube ASTM B111/B111M COPPER AND COPPER ALLOY SEAMLESS CONDENSER TUBES AND FERRULE STOCK

ASTM B395/B395M U-BEND SEAMLESS COPPER AND COPPER ALLOY HEAT EXCHANGER AND CONDENSER TUBES

ASTM B552 SEAMLESS AND WELDED COPPER-NICKEL TUBES FOR WATER DESALTING PLANTS

ASTM B359/B359M COPPER AND COPPER-ALLOY SEAMLESS CONDENSER AND HEAT EXCHANGER TUBES WITH INTEGRAL FINS

If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

Thermal Properties
Treatment	Minimum*	Maximum*
* Temperature is measured in Fahrenheit.
Annealing	1350	1500
Hot Working Temperature	1650	1900

Typical uses
Product Category	Product	Reason Category	Reason
Industrial	Condenser Tubing	Corrosion Resistance	Corrosion Resistance
Condenser Tubing	Corrosion Resistance	Corrosion Resistance to 700 F.
Condenser Tubing	Corrosion Resistance	Corrosion Resistance to Salt Water
Condenser Tubing	Corrosion Resistance	Erosion and Impingement Corrosion Resistance
Condenser Tubing	Mechanical Properties	Moderate Strength
Condenser Tubing	Softening Resistance	Resistance to Softening
Heat Exchanger Tubing	Corrosion Resistance	Corrosion Resistance
Heat Exchanger Tubing	Corrosion Resistance	Corrosion Resistance to 700 F.
Heat Exchanger Tubing	Corrosion Resistance	Corrosion Resistance to Salt Water
Heat Exchanger Tubing	Corrosion Resistance	Erosion and Impingement Corrosion Resistance
Heat Exchanger Tubing	Mechanical Properties	Moderate Strength
Heat Exchanger Tubing	Softening Resistance	Resistance to Softening
Marine	Salt Water Piping	Corrosion Resistance	Corrosion Resistance
Salt Water Piping	Corrosion Resistance	Corrosion Resistance to 700 F.
Salt Water Piping	Corrosion Resistance	Corrosion Resistance to Salt Water
Salt Water Piping	Corrosion Resistance	Erosion and Impingement Corrosion Resistance
Salt Water Piping	Mechanical Properties	Moderate Strength
Salt Water Piping	Softening Resistance	Resistance to Softening

Applicable Specifications
Form	Specific Sub-Form	Application	System	Standard	Description
Bar			ASTM	B122/B122M	COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR
Condenser & Heat Exchanger Tube with Integral Fins			ASTM	B956/B956M	WELDED COPPER AND COPPER-ALLOY CONDENSER AND HEAT EXCHANGER TUBES WITH INTEGRAL FINS
Pipe			ASTM	B466/B466M	SEAMLESS COPPER-NICKEL PIPE AND TUBE
Plate		Condenser Tube	ASTM	B171/B171M	COPPER ALLOY CONDENSER TUBE PLATES
		ASTM	B122/B122M	COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR
Sheet			ASTM	B122/B122M	COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR
Strip			ASTM	B122/B122M	COPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR
Tube			ASTM	B543/B543M	WELDED COPPER AND COPPER ALLOY HEAT EXCHANGER TUBE
	Condenser Tube	ASTM	B111/B111M	COPPER AND COPPER ALLOY SEAMLESS CONDENSER TUBES AND FERRULE STOCK
		ASTM	B395/B395M	U-BEND SEAMLESS COPPER AND COPPER ALLOY HEAT EXCHANGER AND CONDENSER TUBES
		ASTM	B552	SEAMLESS AND WELDED COPPER-NICKEL TUBES FOR WATER DESALTING PLANTS
		ASTM	B359/B359M	COPPER AND COPPER-ALLOY SEAMLESS CONDENSER AND HEAT EXCHANGER TUBES WITH INTEGRAL FINS

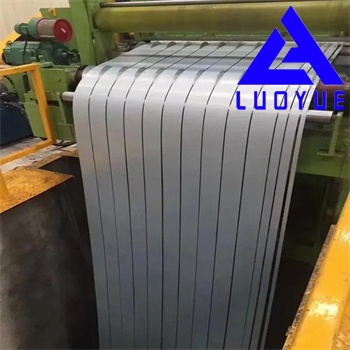

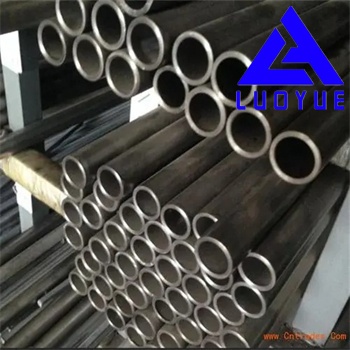

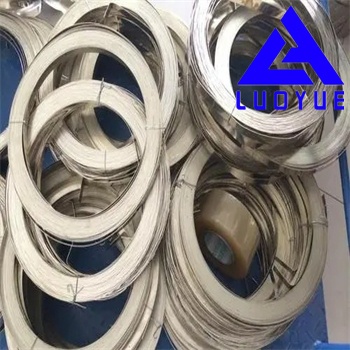

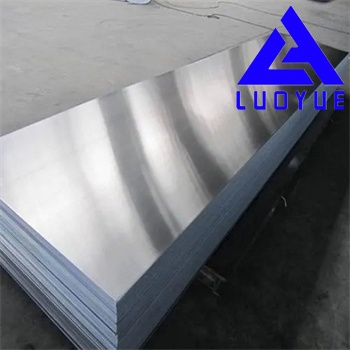

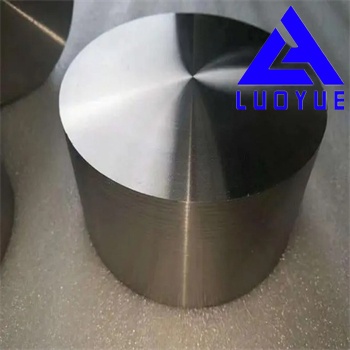

1. Stock view
