A 70/30 cupro nickel CuNi30Fe1 with the additions of iron and manganese giving excellent corrosion resistance in fresh and sea water and anti-biofouling properties. The alloy having a higher content of nickel than 90/10 cupro nickel gives enhanced mechanical properties, whilst still maintaining the excellent corrosion properties. The alloy meets the requirements of ASTM B 171 C71500 and ASTM B 151 C71500.
Composition
Element Cu Ni Mn Fe Impurities % Bal 30-32 0.5-1.5 0.6-1.0 0.3 Max Typical Mechanical Properties
Form Cross sectional area
Metric mmYield 0.2% MPa UTS
MPaElong % Izod (Joules) Rod >180-500 120-140 330-360 34-40 54-90 Rod >500-1230 115-135 320-350 32-38 54-85 Rod >1230 110-130 310-250 30-36 54-85 Forgings All sizes 110-140 310-360 30-40 54-100 Optimised material production
Manufacturing Ranges

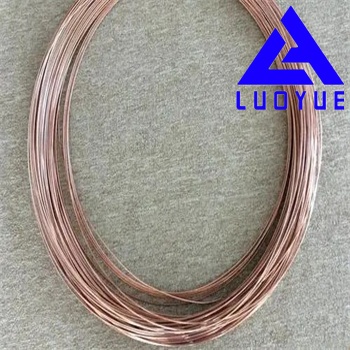

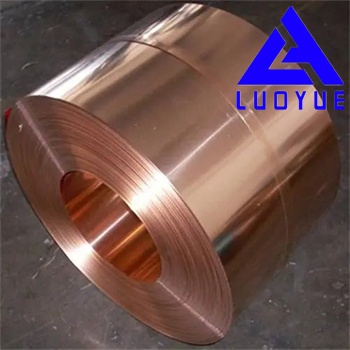

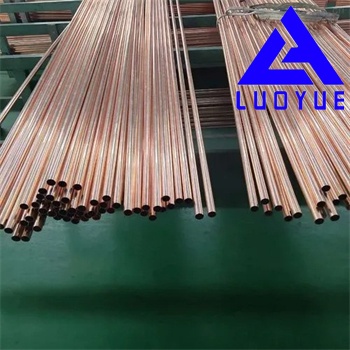

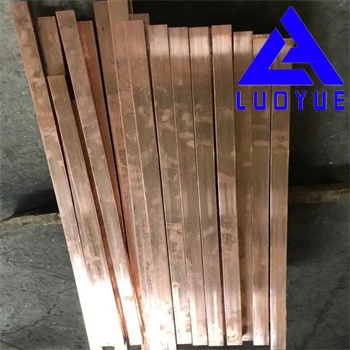

Available in rod, bar, square, rectangle, plate, hollow and all shaped forgings up to 4,500kgs (9900lbs).
Copper Alloys is also regularly making customised shaped forgings and can increase piece weight up to 20,000kg/44,000lbs.
Copper Alloys Ltd also offers finished machined components in all alloys, complete project management and tailored mechanical properties beyond those of the specification to meet special customer requirements.
All information is supplied for guidance only and gives no guarantee for end applications.
Typical Physical Properties
(Courtesy Def Stan 02-879)
Metric Imperial Density 8950 kg/m³ 0.325lb/in³ Specific Gravity 8.95 Specific Heat 377J/kg K 0.09Btu/lb°F Electrical Conductivity 2.7m/Ω-mm²@20 ºC 5% IACS Thermal Conductivity 29.3 W/mK 17Btuft/ft²hr°F Thermal Linear Expansion 16 µstain/K Range (20-200 ºC) 9x 10-6per°F Range (68-572°F) Electrical Resistivity 0.34 Ωmm²/m 207Ω(circ mil/ft Relative Magnetic Permeability 1.0006 µ Machining Index 20% (Based on free machining brass 100%) Modulus of Rigidity (50mm rod annealed) 57 GPa Modulus of Elasticity (50mm rod annealed) (In Tension) 152 GPa Shear Strength (50mm rod annealed) 205MPa Poisson’s Ratio 0.33 Fatigue Limit in air (rotating)(25mm rod) 1x107 cycles +/- MPa 154 Melting Range 1170-1240 ºC 2140-2265°F Hot Working 925-1025ºC (No forging below 850 ºC) 1695-1875°F Cold Working good (Anneal 650-850 ºC) 1200-1560°F Cryogenic Retains properties down to -269 ºC -516°F Elevated Temperatures Retains properties to 350 ºC 662°F Optimised material production
