316 Stainless Steel Strip, Coil, Foil, Wire, ASTM A666, AMS5524

316 STAINLESS STEEL APPLICATIONS
Pulp and Paper Equipment
Heat exchangers
Propeller shafts
Fittings
Dyeing Equipment
Exterior Architectural components in Marine Coastal Areas

WHAT IS 316 STAINLESS STEEL?
Type 316 (UNS 31600) is an austenitic chromium-nickel stainless steel alloy containing molybdenum. This addition increases corrosion resistance, improves resistance to pitting chloride ion solutions and provides increased strength at elevated temperatures. Properties of this austenitic stainless steel grade are similar to those of type 304 except that type 316 is somewhat stronger at elevated temperature ranges. In regards to formability, 304 stainless is usually a better option for forming operations because the higher molybdenum content in Grade 316 means that it possesses higher strength and work-hardening rates which can have adverse effects on formability. While 316 can typically be drawn and formed in a similar fashion to 304, temperature variations can make those processes challenging. For instance, the 316 alloy may become magnetic when cold worked.


Corrosion resistance is improved, particularly against sulfuric, hydrochloric, acetic, formic and tartaric acids, as well as corrosion caused by acid sulfates and alkaline chlorides.


The low carbon version of 316 Stainless is 316L Stainless Steel which has increased resistance to intergranular corrosion.

Composition

Table 1. Composition ranges for 316 grade of stainless steels.

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	Min	-	-	-	0	-	16.0	2.00	10.0	-
	Max	0.08	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316L	Min	-	-	-	-	-	16.0	2.00	10.0	-
	Max	0.03	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316H	Min	0.04	0.04	0	-	-	16.0	2.00	10.0	-
	max	0.10	0.10	0.75	0.045	0.03	18.0	3.00	14.0	-

Mechanical Properties

Table 2. Mechanical properties of 316 grade stainless steels.

Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50 mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
316	515	205	40	95	217
316L	485	170	40	95	217
316H	515	205	40	95	217

Note: 316H also has a requirement for a grain size of ASTM no. 7 or coarser.

Mechanical Properties of S31600 Steels: Following are some of the mechanical properties of 420 steels:

• The tensile strength of the 316 alloy steel is expressed in Newton per millimeters and it must be at-least 520 N/mm2 (MPa).
• The elongation property of S31600 steel varies with the heat treatment process and thickness but it is indicated typically 40%.
• S31600 can be welded by all fusion and resistance methods. But it is not weld able with oxyacetylene welding methods.
• The maximum Brinell hardness is indicated around 217.
• Corrosion resistance is higher than the other known austenitic grades.

Equivalent Material Grades in Other International Standards: Read more about the

• Equivalent grade of this type in SAE is 316
• In JIS designation, the corresponding material is referred as SUS 316 alloy.
• In DIN standard, the corresponding material is referred as 1.4401 type steel.
• In Swedish SS standard, the corresponding material is referred as 2347 type steel.

If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

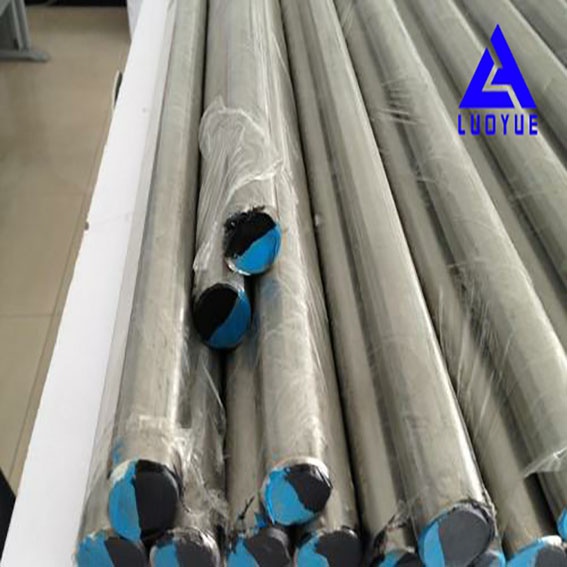

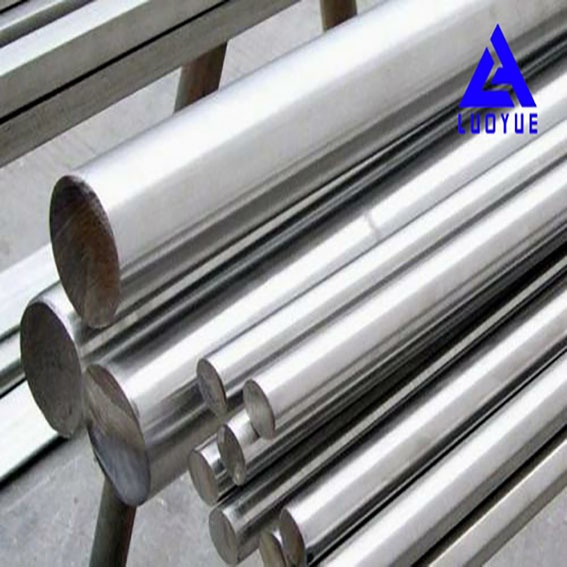

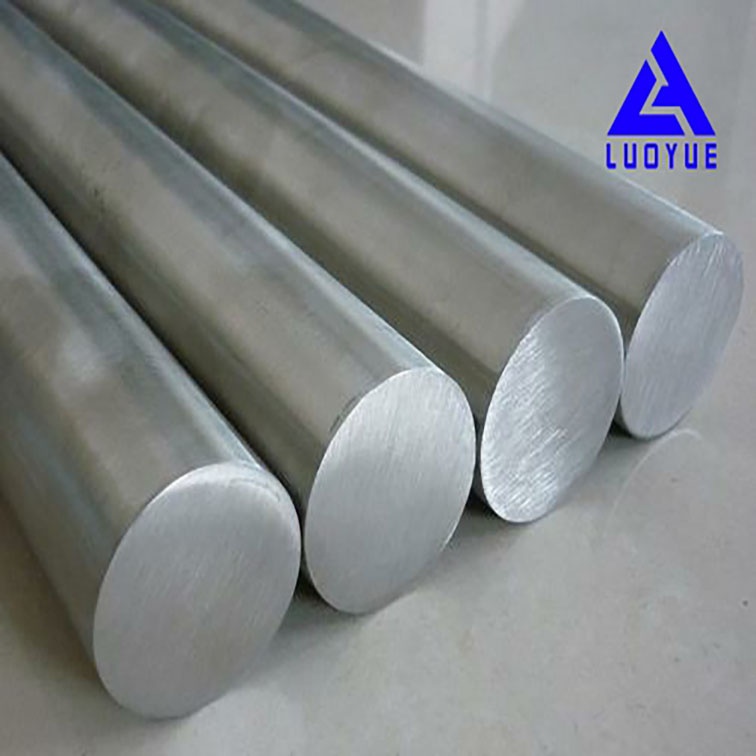

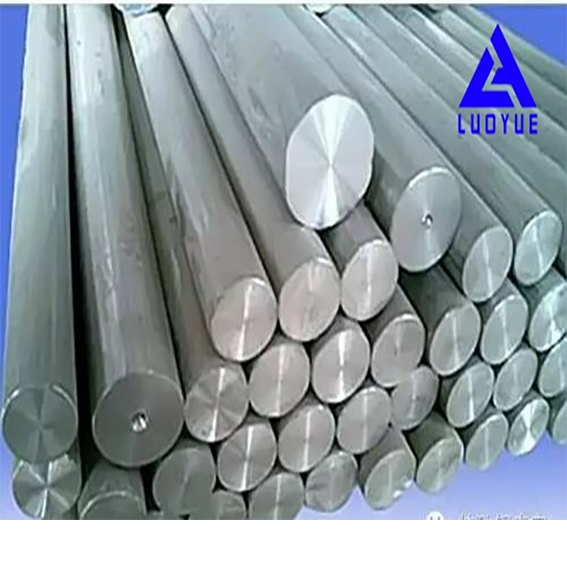

1. Stock view



2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch

Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.



2.Inspection Machining



   Metal composition testing machine                      Computerised Materials Torsion Testing Machine                Metal bar composite rod bending tensile strength testing machine

       3. Material test certificate

     4. Packaging

    In the steel export activities, we also need to pack the steel to prevent the steel from being scattered in the transportation process. In the hoisting process, it is necessary to lift the steel. So steel is very necessary in the export process. Below is the picture of packaging：

According to the requirements of the state of steel materials, the use of binding, bare, frame, pallet.

Packing standard: according to the following national standard requirements (the parts beyond the requirements will be specified separately)

GB／T191 packaging-pictorial marking for handling of goods

GB／T4857 (all parts) basic test for transport packages

GB／T4879 rustproof packaging

GB／T5048 damp-proof packing

GB／T7350water-proof packing

GB／T8166 Package cushioning design

GB/T4892-1996  Hard straight square transport packaging size series

GB/T13201-91 Cylinder transport package size series

 GB/T16471-1996Design and make the size limit of transport package

5. Logistic



1. Company profile

Luoyue Precision Metal established in 2018, is a leading Stockists and global distributor for Metal Raw Materials like Steel/Aluminum/ Stainless steel/Copper/ Nickel Rods, Bars, Plates, Sheets,Pipes, fittings, fasteners, Inconel alloys, Wire and Wire-Mesh to customers from aerospace, automotive, electronics, precision manufacturing, ordnance, marine, shipbuilding, oil & gas, power plant and construction.

The company has a high-precision, high-efficiency modern processing site, CNC machine tools and complete testing and inspection technology, and introduces international advanced technologies.

           2. Certificates. (Business certificate/ISO9001/Trading certificate/SGS/FormE)

                  .

          3. Our customers

                 Customer visits

           4. Past Inquiry

                  .

   1.Customer Rating



FAQ
1. Q: Are you a manufacturer?
 A:No, we are not manufacturers. We have our own warehouse and our own company. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
 A: Sure, we welcome you to visit the factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
 A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
 A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best  price with earliest vessel and professional service.
5. Q: How long is the delivery time?
 A: Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
 A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
 A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
 A: 2 Tons
