EN 1.4436 (X3CrNiMo17-13-3) Stainless Steel
EN 1.4436 stainless steel is an austenitic stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the solution annealed (AT) condition. 1.4436 is the EN numeric designation for this material. X3CrNiMo17-13-3 is the EN chemical designation.


This material is well established: the Further Reading section below cites a number of published standards, and that list is not necessarily exhaustive.


The graph bars on the material properties cards below compare EN 1.4436 stainless steel to: wrought austenitic stainless steels (top), all iron alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.

Chemical composition %   of   steel   X3CrNiMo17-13-3 (1.4436):   EN 10088-2-2005

Particular ranges of sulphur content may provide improvement of particular properties. For machinability a controlled sulphur content of 0.015 % to 0.030% is recommended and permitted. For weldability, a controlled sulphur content of 0.008 % to 0.030 % is recommended and permitted. For polishability, a controlled sulphur content of 0.015 % max is recommended. Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.

C	Si	Mn	Ni	P	S	Cr	Mo	N
max   0.05	max   1	max   2	10.5 - 13	max   0.045	max   0.015	16.5 - 18.5	2.5 - 3	max   0.11

Mechanical properties of   steel   X3CrNiMo17-13-3 (1.4436)

Rm - Tensile strength (MPa) (+A)	500-730

Rm - Tensile strength (MPa) (+AT)	510-710

Rm - Tensile strength (MPa) (+AT+C)	790-830

Rp0.2 0.2% proof strength (MPa) (+A)	200-240

Rp0.2 0.2% proof strength (MPa) (+AT)	205

The steel grade X3CrNiMo17-13-3 acc. to DIN EN 10272 : 2001-01is used for hot and cold formed rods for pressure vessels. The corrosion behaviour of the steel is similar to 1.4401. Slightly improved resistance to selective attack due to the higher Mo-content. The material is resistant to intercrystalline corrosion (ic) in delivery condition, in sensitized condition for cross sections up to 40 mm resistance to ic for cross sections up to 40 mm if the sensitization treatment of 10 min. has been carried out at 650°C +/- 10°C with subsequent cooling.

X3CrNiMo17-13-3 - Detail

Seamless circular steel tubes for mechanical and general engineering purposes - Technical delivery conditions - Part 2: Stainless steel

Mechanical properties of grade X3CrNiMo17-13-3 NF EN 10028-7

Proof strength Rp0.2 (MPa)	Tensile strength Rm (MPa)	Impact energy KV (J)	Elongation at fracture A (%)	Reduction in cross section on fracture Z (%)	As-Heat-Treated Condition	Brinell hardness (HBW)
546 (≥)	688 (≥)	41	22	22	Solution and Aging, Annealing, Ausaging, Q+T,etc	221

Physical properties of grade X3CrNiMo17-13-3 NF EN 10028-7

Property	Density kg/dm3	Temperature T °C/F	Specific heat J / kgK	Thermal conductivity W/mK	Electric resistance µΩ·cm	Modulus of elasticity kN/mm2	Expansion rate
658 (≥)	345 (≥)	32	24	22	Solution and Aging, Annealing, Ausaging, Q+T,etc	143
Temp. °C/°F	Creep strain limit (10000h) (Rp1,0) N/mm2	Creep rupture strength (10000h) (Rp1,0) N/mm2

If you need product information or price, please fill in your contact information in the form below, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

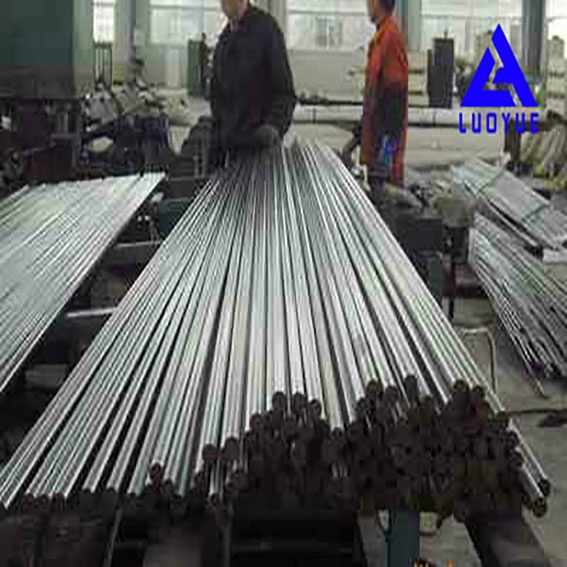

1. Stock view
