What is sus 201 stainless steel?

Type 201 is an austenitic chromium-nickel-manganese stainless steel that was developed in the 1950's due to worldwide nickel shortages. In the Type 201 composition, manganese and nitrogen are partially substituted for nickel.

Products Description

Steel grade	200/300/400 series
Standard	ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296
Material	304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202
Surface	Polishing,annealing,pickling,bright
Type	hot rolled and cold rolled Seamless or Welded
Delivery time	Prompt delivery or as the order quantity.
Package	Standard export seaworthy package,or as required.
Application	Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required.
Contact	If you have any questions,please feel free to contact me.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240*

Element	201
Carbon	0.15
Chromium	16.0-18.0
Nickel	3.5-5.5
Manganese	5.50-7.50
Silicon	1.00
Nitrogen	0.25
Phosphorus	0.060
Sulfur	0.030

* Maximum, unless range is indicated

Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240

Property	201
Yield Strength, min. (ksi)	45
Tensile Strength, min. (ksi)	95
Elongation, min. (%)	40
Hardness, max. (Rb)	100

Mechanical property requirements for cold worked flat rolled products as specified in ASTM A666

Condition	Yield Strength (ksi) min.	Tensile Strength (ksi) min.	Elongation % min. in 2 in.
			<0.015 in.	≥0.015 in.
¼ Hard	75	125	25	25
½ Hard	110	150	15	18
¾ Hard	135	175	10	12
Full Hard	140	185	8	9

Physical Properties
Physical properties for Type 201 stainless steel

Property	201
Density, lb/in3	0.283
Modulus of Elasticity, psi	28.6 x 106
Coefficient of Thermal Expansion, 68-212˚F, /˚F	9.2 x 10-6
Thermal Conductivity, Btu/ft hr ˚F	9.4
Specific Heat, Btu/lb ˚F	0.12
Electrical Resistivity, Microohm-in	27.0

Standards
Typical standards for Type 201 stainless steel

201

ASTM A240

ASTM A666

ASME SA240

Other Designations
Analyze Your Metals | Request a Quote
Other designations that are equivalent to grade 201 stainless steel include:


ASTM A213
ASTM A240
ASTM A249
ASTM A276
ASTM A412
ASTM A666
QQ S766
ASME SA412
SAE 30201
SAE J405 (30201)
Fabrication and Heat Treatment
Forming
Grade 201 stainless steel can be formed using all commonly employed forming methods and pressures similar to that of 300 series stainless steels.


Welding
Grade 201 stainless steel can be welded using all conventional welding techniques.


Hot Working
Grade 201 stainless steel is hot worked at 1149-1232°C (2100-2250°F).


Annealing
Grade 201 stainless steel is annealed at 1010-1093°C (1850-2000°F). Temperature should not be exceeded above 2000°F in order to avoid scaling. It is rapidly cooled to prevent crystallization of carbides.


Applications
Grade 201 stainless steel is used in structural members, different kinds of severely formed parts, and siding and roofing for railway cars and trailers.

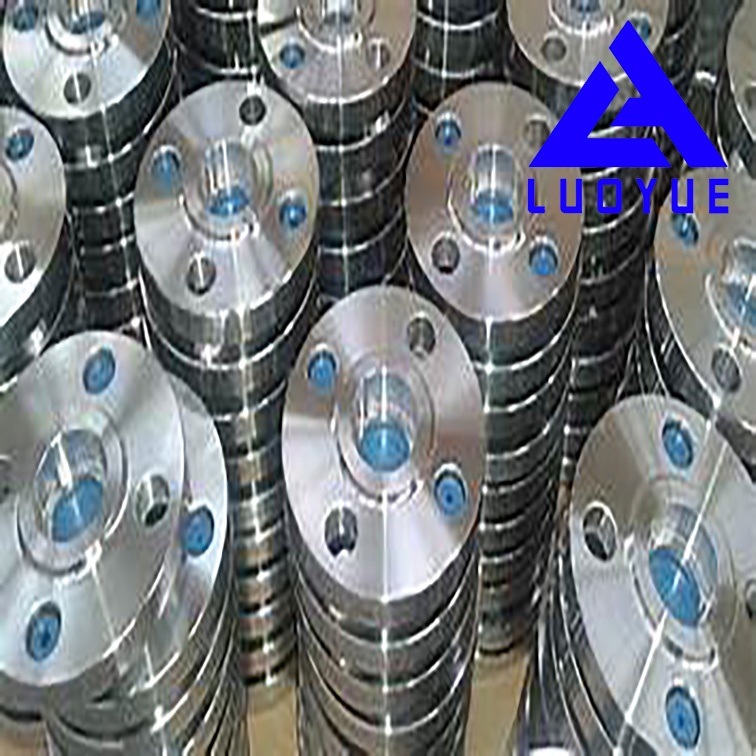

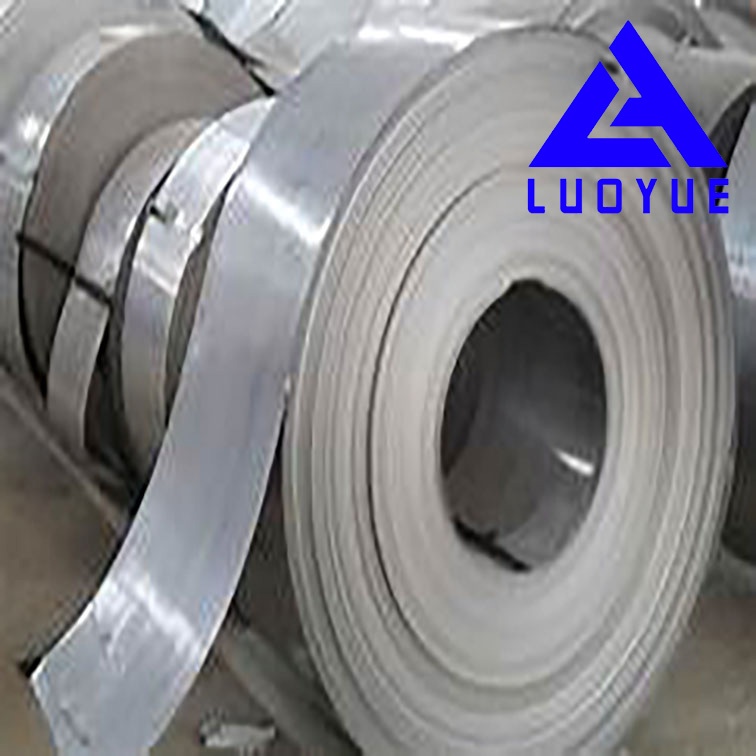

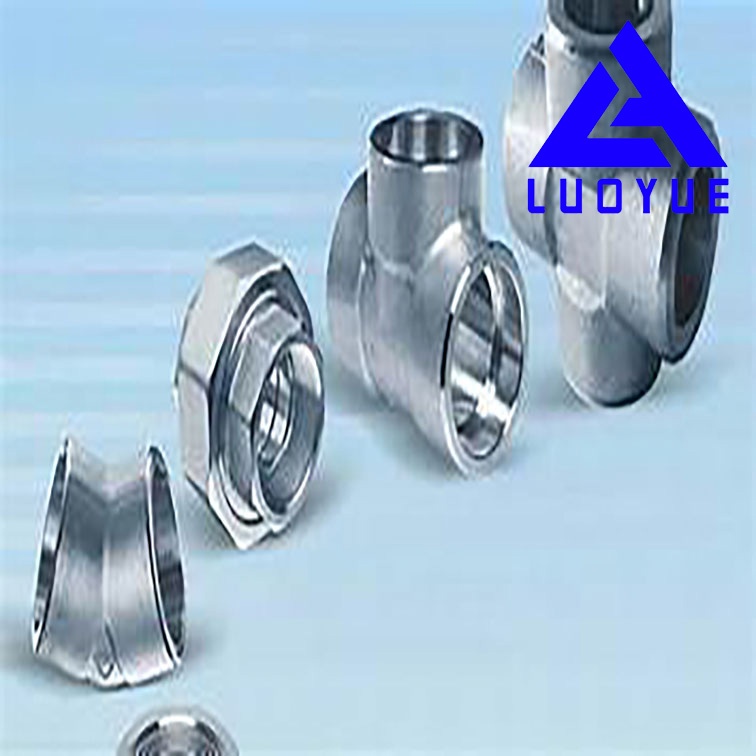

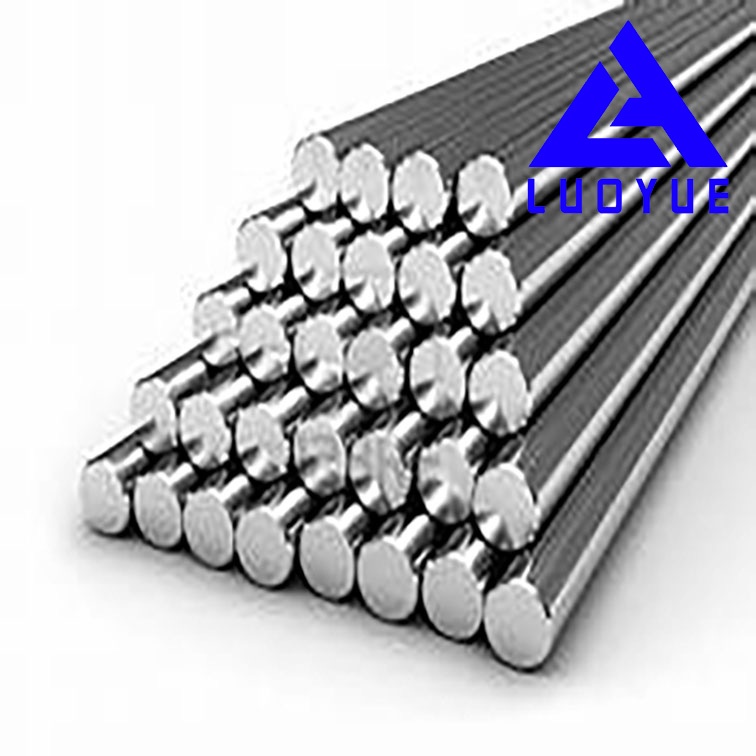

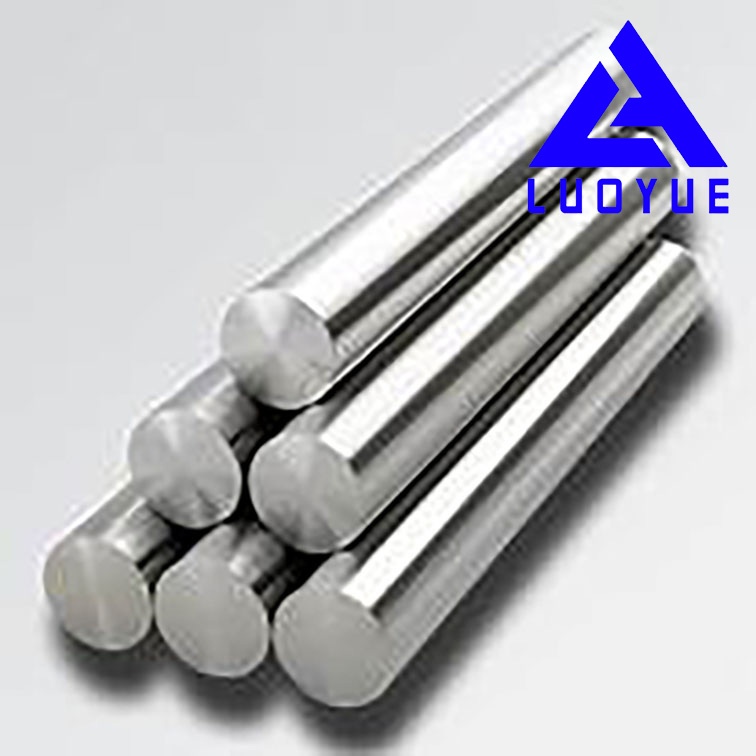

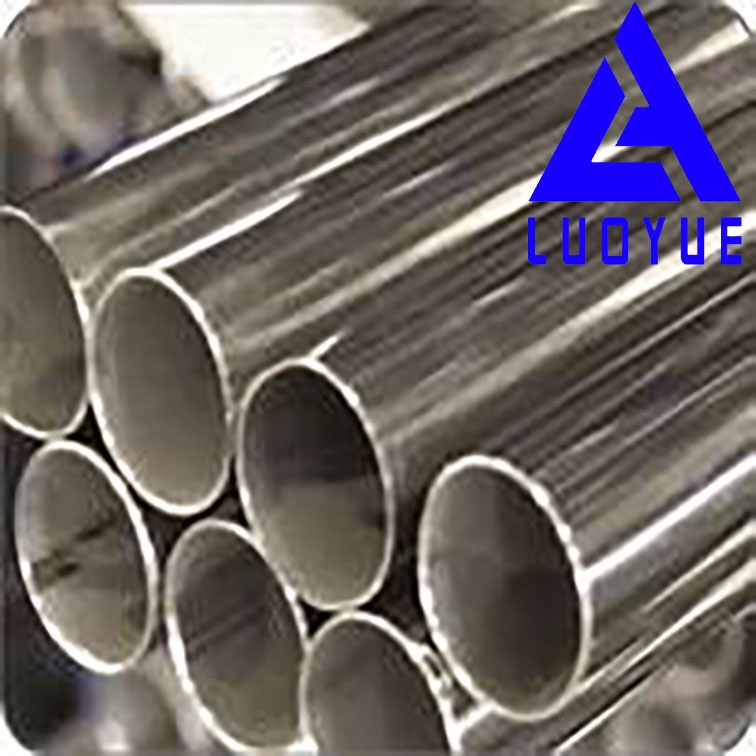

1. Stock view



2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch

Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.



2.Inspection Machining



   Metal composition testing machine                      Computerised Materials Torsion Testing Machine                Metal bar composite rod bending tensile strength testing machine

       3. Material test certificate

     4. Packaging

    In the steel export activities, we also need to pack the steel to prevent the steel from being scattered in the transportation process. In the hoisting process, it is necessary to lift the steel. So steel is very necessary in the export process. Below is the picture of packaging：

According to the requirements of the state of steel materials, the use of binding, bare, frame, pallet.

Packing standard: according to the following national standard requirements (the parts beyond the requirements will be specified separately)

GB／T191 packaging-pictorial marking for handling of goods

GB／T4857 (all parts) basic test for transport packages

GB／T4879 rustproof packaging

GB／T5048 damp-proof packing

GB／T7350water-proof packing

GB／T8166 Package cushioning design

GB/T4892-1996  Hard straight square transport packaging size series

GB/T13201-91 Cylinder transport package size series

 GB/T16471-1996Design and make the size limit of transport package

5. Logistic



1. Company profile

Luoyue Precision Metal established in 2018, is a leading Stockists and global distributor for Metal Raw Materials like Steel/Aluminum/ Stainless steel/Copper/ Nickel Rods, Bars, Plates, Sheets,Pipes, fittings, fasteners, Inconel alloys, Wire and Wire-Mesh to customers from aerospace, automotive, electronics, precision manufacturing, ordnance, marine, shipbuilding, oil & gas, power plant and construction.

The company has a high-precision, high-efficiency modern processing site, CNC machine tools and complete testing and inspection technology, and introduces international advanced technologies.

           2. Certificates. (Business certificate/ISO9001/Trading certificate/SGS/FormE)

                  .

          3. Our customers

                 Customer visits

           4. Past Inquiry

                  .

   1.Customer Rating



FAQ
1. Q: Are you a manufacturer?
 A:No, we are not manufacturers. We have our own warehouse and our own company. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
 A: Sure, we welcome you to visit the factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
 A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
 A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best  price with earliest vessel and professional service.
5. Q: How long is the delivery time?
 A: Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
 A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
 A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
 A: 2 Tons

Contact us
