3105 aluminum alloy has good corrosion resistance, good plasticity and processability, and the performance of gas welding and arc welding is good. 3105 aluminum has slightly higher strength than 3003 aluminum, others properties are similar to 3003 aluminum alloy. 3105 aluminium has good anti-rust property, good conductivity, electrical conductivity can be up to 41%, 3105 aluminum sheet has high plasticity in the annealing state, in the semi cold hardened, the plasticity is still better, it has low plasticity, good corrosion resistance, good weld-ability and poor cutting properties in cold hardening state.

What is the difference between 3003 and 3105 aluminum alloy?


3105 aluminum alloy has good corrosion resistance, good plasticity and processability, and the performance of gas welding and arc welding is good. 3105 aluminum has slightly higher strength than 3003 aluminum, others properties are similar to 3003 aluminum alloy.

What is aluminium alloy 3105 used for?

Aluminum alloy 3105 is essentially a 98% aluminum alloy with minor additions to increase strength over that of alloy 1100 and 3003. It is not hardenable by heat treatment and it has good corrosion resistance, formability and weldability. Aluminum alloy 3105 is most commonly used where a painted finish is desired.

The chemical composition of 3105 aluminum are:
Aluminum Al: allowance
Silicon- Si: less than 0.6%
Copper-Cu: less than 0.30%
Magnesium-Mg:0.20 ~ 0.8%
Zinc-Zn: less than 0.40%
Manganese-Mn:0.30 ~ 0.8%
Titanium-Ti: less than 0.10%
Chromium-Cr: less than 0.20%
Iron-Fe:0.000 ~ 0.700%

Mechanical Properties
Mechanical property requirements for strain hardened H12 temper (¼ hard) as specified in ASTM B209 and ASME SB209

Thickness (inch)	Yield Strength Min. (ksi)	Tensile Strength (ksi)		Elongation (%) Min.
		Min.	Max.
0.017 – 0.019	15.0	19.0	26.0	1
0.020 – 0.031	15.0	19.0	26.0	1
0.032 – 0.050	15.0	19.0	26.0	2
0.051 – 0.080	15.0	19.0	26.0	3

Mechanical property requirements for strain hardened H14 temper (½ hard) as specified in ASTM B209 and ASME SB209

Thickness (inch)	Yield Strength Min. (ksi)	Tensile Strength (ksi)		Elongation (%) Min.
		Min.	Max.
0.017 – 0.019	18.0	22.0	29.0	1
0.020 – 0.031	18.0	22.0	29.0	1
0.032 – 0.050	18.0	22.0	29.0	2
0.051 – 0.080	18.0	22.0	29.0	2

Physical Properties
Physical properties for Alloy 3105

Property	3105 Data
Density, lb/in3	0.0983
Modulus of Elasticity, psi	10.0 x 106
Coefficient of Thermal Expansion, 68-212˚F, /˚F	12.1 x 10-6
Thermal Conductivity, Btu/ft hr ˚F	99
Specific Heat, Btu/lb ˚F	0.214
Electrical Resistivity, Microohm-in	1.504

If you need product information or price, please fill in your contact information in the form, we will usually contact you within 12 hours. You could also email me info@lyapm.com to get prompt reply.

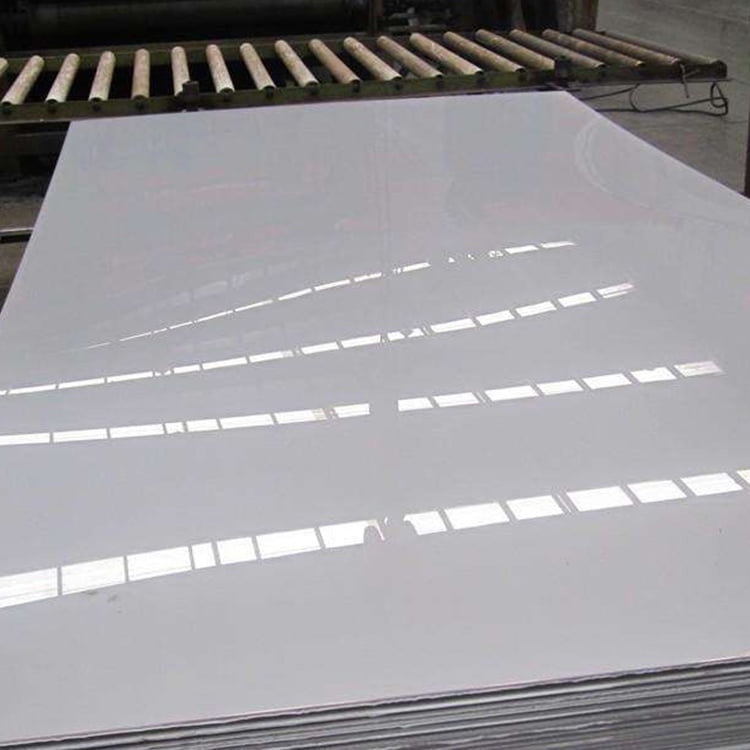

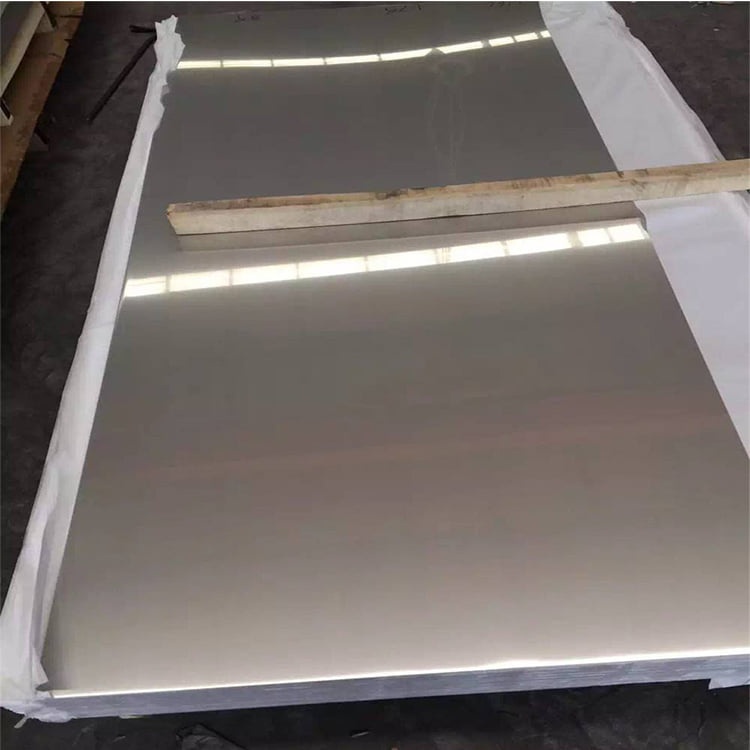

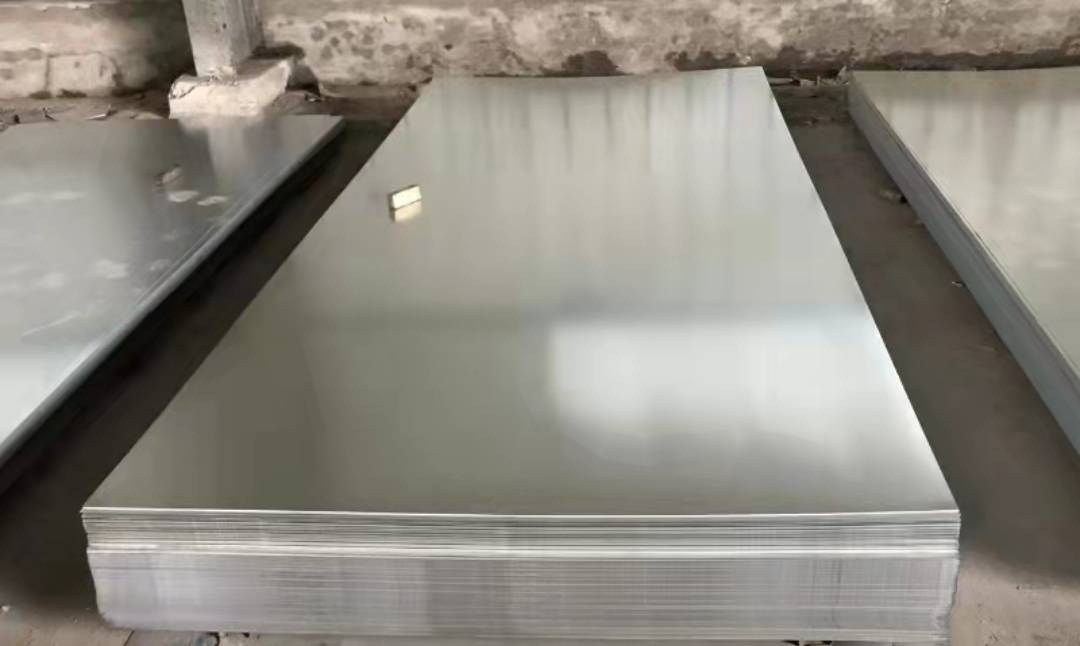

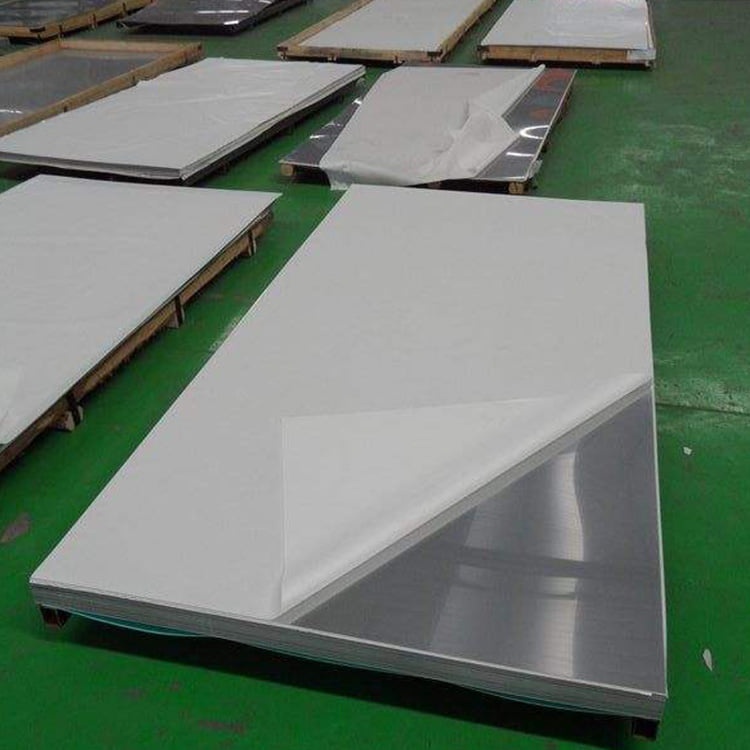

1. Stock view



2. Processing and Technology for heating processing

Cutting processing      Quenching              Tempering                  Annealing



3. Quality testing

1.      Inspection Institution

Shanghai Fuda Testing Technology Group Co., LTD. Nanjing Branch

Focus on analysis, testing, testing, r & D four service areas. Analysis fields include component analysis, formula analysis, failure analysis, structure analysis, methodology development and validation, raw material quality control/evaluation, consistency evaluation, feature analysis and other directions; The testing field involves physical and chemical properties testing, toxic and harmful substances testing, flame retardant performance testing, reliability testing and other directions; The testing field involves energy spectrum, electron microscope, spectrum, chromatography, mass spectrometry and other directions; The r&d field involves formula development, formula upgrading, formula customisation, cooperative research and development and other directions.

Beijing Zhongke Chemical Technology Research Institute

It is a chemical technology research institution based on scientific research and testing. They adhere to paying equal attention to basic research and applied research, and combining applied research and technology transformation, developing into a comprehensive research institute characterised by "task-oriented disciplines". Approved by the relevant national departments, the company has become a third-party analysis and testing technology service unit, and has obtained CMA qualification certification. It has carried out research and development and design, analysis and testing, test and verification, generic processing, information and intellectual property services, providing public services for innovation of technology-based enterprises. Supported by the government innovation Fund, the institute has been awarded as a national high-tech enterprise.



2.Inspection Machining



   Metal composition testing machine                      Computerised Materials Torsion Testing Machine                Metal bar composite rod bending tensile strength testing machine

       3. Material test certificate

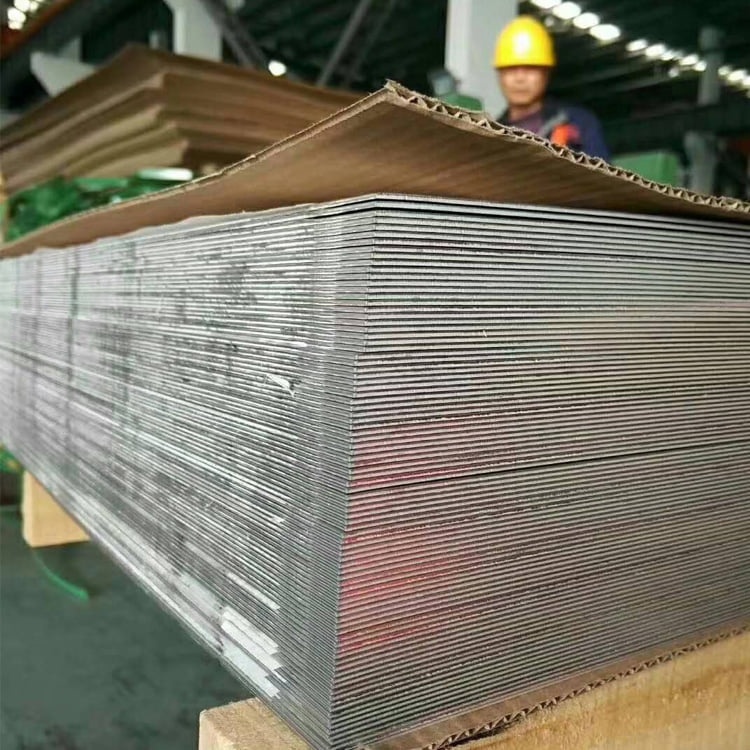

     4. Packaging

    In the steel export activities, we also need to pack the steel to prevent the steel from being scattered in the transportation process. In the hoisting process, it is necessary to lift the steel. So steel is very necessary in the export process. Below is the picture of packaging：

According to the requirements of the state of steel materials, the use of binding, bare, frame, pallet.

Packing standard: according to the following national standard requirements (the parts beyond the requirements will be specified separately)

GB／T191 packaging-pictorial marking for handling of goods

GB／T4857 (all parts) basic test for transport packages

GB／T4879 rustproof packaging

GB／T5048 damp-proof packing

GB／T7350water-proof packing

GB／T8166 Package cushioning design

GB/T4892-1996  Hard straight square transport packaging size series

GB/T13201-91 Cylinder transport package size series

 GB/T16471-1996Design and make the size limit of transport package

5. Logistic



1. Company profile

Luoyue Precision Metal established in 2018, is a leading Stockists and global distributor for Metal Raw Materials like Steel/Aluminum/ Stainless steel/Copper/ Nickel Rods, Bars, Plates, Sheets,Pipes, fittings, fasteners, Inconel alloys, Wire and Wire-Mesh to customers from aerospace, automotive, electronics, precision manufacturing, ordnance, marine, shipbuilding, oil & gas, power plant and construction.

The company has a high-precision, high-efficiency modern processing site, CNC machine tools and complete testing and inspection technology, and introduces international advanced technologies.

           2. Certificates. (Business certificate/ISO9001/Trading certificate/SGS/FormE)

                  .

          3. Our customers

                 Customer visits

           4. Past Inquiry

                  .

   1.Customer Rating



FAQ
1. Q: Are you a manufacturer?
 A:No, we are not manufacturers. We have our own warehouse and our own company. I believe we will be the most suitable supplier for you.
2. Could we visit your factory?
 A: Sure, we welcome you to visit the factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
 A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
 A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best  price with earliest vessel and professional service.
5. Q: How long is the delivery time?
 A: Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
 A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
 A: We provide after-sale service and offer 100% guarantee on our products.
8. Q: What is your MOQ?
 A: 2 Tons

Contact us
